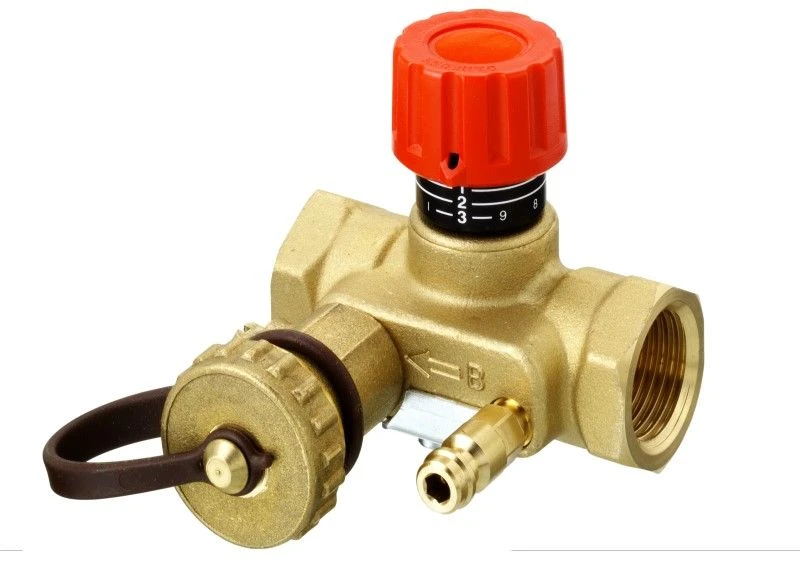

MNT Type Balancing Valves for Heating and Cooling Systems

Available for Import

MNT Type Balancing Valves for Efficient Heating and Cooling Systems

Regulating Valves

Manufacturer: RIDAN LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The MNT type balancing valves are designed for use in heating and cooling systems in buildings. They should generally be installed in systems with constant hydraulic characteristics. They are not intended for contact with drinking water in domestic water supply systems.

MNT valves combine the functions of manually adjustable variable resistance valves and shut-off valves. MNT valves limit the maximum flow rate of the heating or cooling medium through a riser or installation. The MNT valves are equipped with a measuring nipple and a drain cock, also used for measurement, which allows the MNT valves to be adjusted according to the Danfoss PFM differential pressure and flow measurement device with temperature measuring function.

MNT valves, unlike other valves, have compact overall dimensions, which allows for installation in tight spaces. For ease of operation, the spindle axis of all MNT valves is located p...

Specifications

Climatic version

Category 3 according to GOST 15150-69

Material

Brass (for housing)

Weight

0.31 kg

Mark

Danfoss trade mark

Pressure rating

1.6 MPa

Equipment

valve; insulating shell; instructions; passport (on request in electronic form); operating manual (on request in electronic form).

Steel grade

Brass (for housing)

Type

Brass, coupling

Designation

MNT type balancing valves

Gate tightness (leakage volume / tightness class)

Leakage class D according to ISO 5208

Joining

Female thread

Flow capacity, Kvs

1.6 to 16

Medium temperature

-20 to + 120 °C

Transported medium

Water and aqueous glycol solutions for systems

Nominal diameter

15 to 50 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
