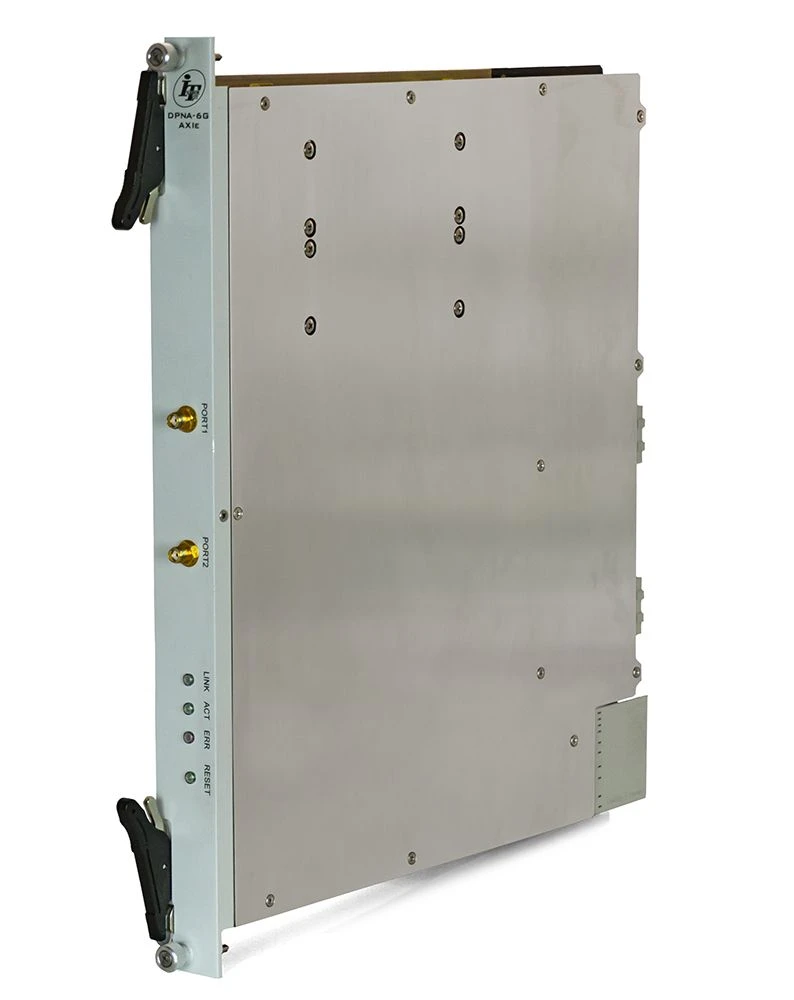

AXIe-1 Chain Parameter Analyzer DPNA-6G for High Precision Measurements

The AXI DPNA-6G module is a circuit parameter analyser made in the form factor of the AXIe-1 module. In the mode of circuit parameter analyser AXI DPNA-6G module measures vector values of circuit parameters on two ports: transmission coefficients (S12, S21) and reflection coefficients (S11, S22). At the same time, all necessary types of calibrations are supported: one- and two-port short-circuit, XX, matched load, transmission normalisation. The software supports the import of parameters of third-party calibration measures.
