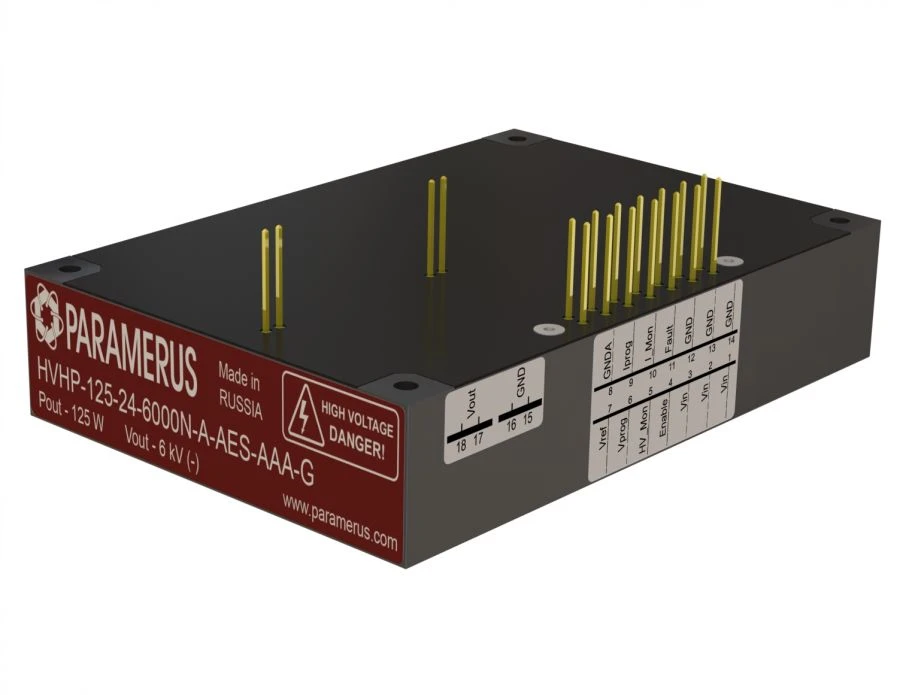

Adjustable High Voltage Power Supply HVHP for Custom Applications

The HVHP series of regulated high-voltage power supplies includes models with maximum output voltages from 1 to 30 kV, 65 and 125 W power with the possibility of user-defined output current and voltage from 0 to the maximum value, supporting the functions of control and monitoring of output current and voltage parameters. All products in this series are characterised by low ripple and have excellent dynamic performance over the entire load and temperature range.
FEATURES
-High efficiency up to 90%
-Ultra low ripple (< 1%)
-Short transient times
-Low temperature drift of output parameters
-Output voltage adjustment 0 - 100%
-Adjustment of output current 0 - 100%
-Short circuit protection
-Protection against output arcing
-Input/output voltage protection
-Temperature protection
-Solder pins for PCB soldering
