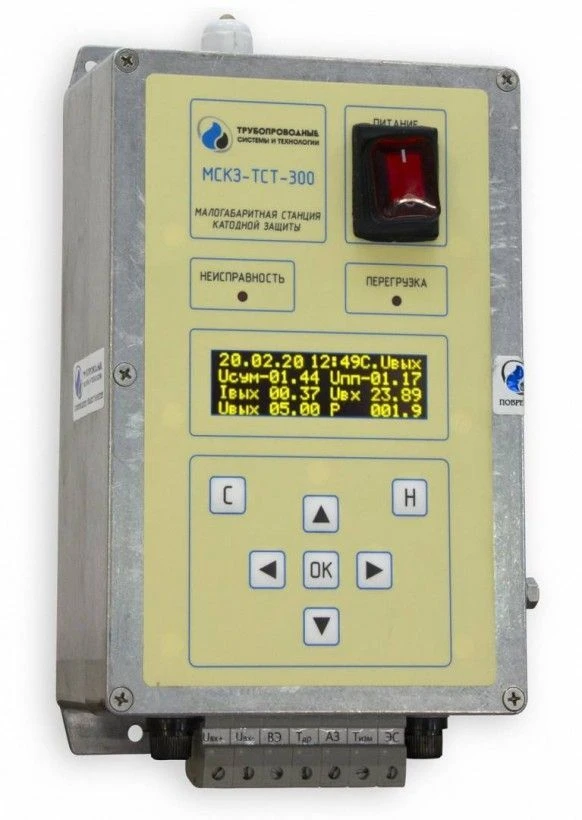

Compact Cathodic Protection Station MSKZ-TST for Steel Structure Protection

MSICP is designed to provide in the electrochemical protection circuit (EPC) the necessary protective current sufficient to maintain the protective potentials of steel structures. MSKZ supports telemetering, tele-signalling, tele-control and tele-regulation modes via various wired and wireless communication channels. The ISCO provides control and data exchange with the local node station LUS-TST or line telemechanics system (SLTM). The ISCS provides conversion of direct current with voltage from 20 V to 60 V or from 80 V to 120 V, alternating current with voltage 230 V (depending on the version), into direct current with subsequent stabilisation depending on the set parameters. MSKZ has from 1 to 4 independent polarisation modules with two output power versions (50 W and 300 W) and a version with GSM/GPRS communication channel. Electric power supply of ISCO can be provided from various sources and converters of electric energy, including alternative ones.
