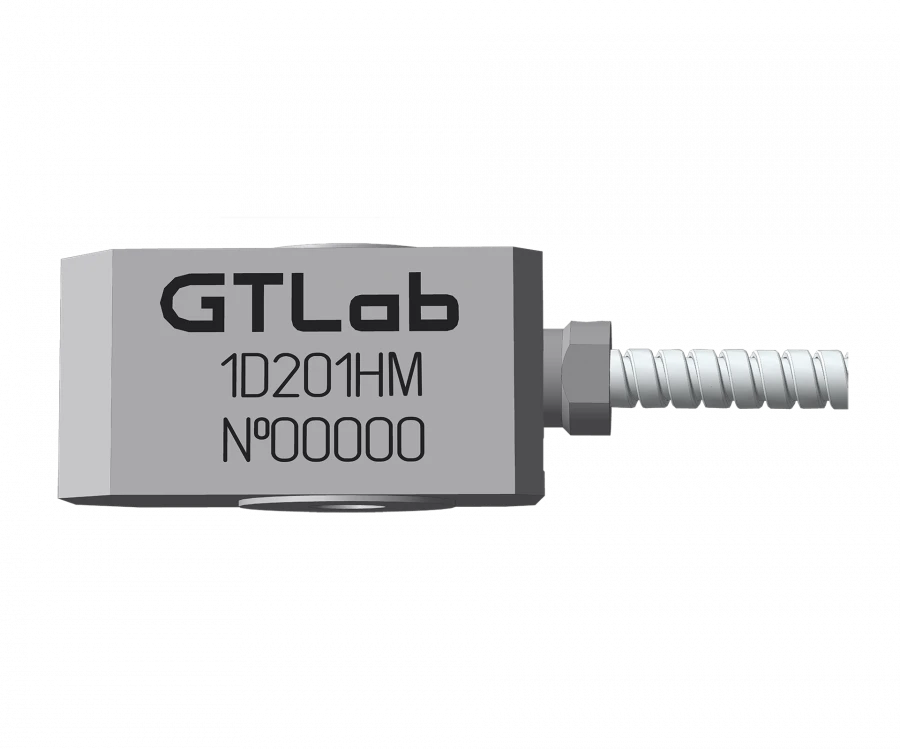

1D201HM Digital 3-Axis MEMS Accelerometer with RS485 Output

Available for Import

1D201HM Digital 3-Axis MEMS Accelerometer for Precision Measurement

Movement Measurement Devices

Manufacturer:GTLAB LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Digital three-component MEMS accelerometers 1D201HM with RS485 output.

Specifications

Housing material

stainless steel

VHF

2, 3, 5, 10 Hz (user adjustable)

Type of product according to PP RF 616

Instruments and other instruments for measurement, control and testing

Measured amplitude range of vibration accelerations

0 ...100 m/s2; 0 ...200 m/s2; 0 ...400 m/s2 (user adjustable)

Measurement mode

vibration acceleration, vibration velocity, vibration displacement

Detector

Swing, Peak, RMS

Measured temperature range of the integrated sensor (± 2 °C)

- 40 ... +85°?

200,500,1000 Hz (user adjustable)

Operating frequency range - frequency response unevenness ± 3 dB

2 ...1 000 Hz; 3 ...1 000 Hz; 5 ...1 000 Hz; 10 ...1 000 Hz (user adjustable)

Maximum impact (peak)

± 1,000 m/s2

Relative transverse conversion ratio

< 5%

Operating temperature range

- 40 ... +85°?

Output

RS-485, Modbus RTU protocol

Supply voltage ± 10 %

+ (5 ... 12) ?

Consumption current

? 20 mA

Number of measuring axes

3 (x, y, z)

Weight

160 ?

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
