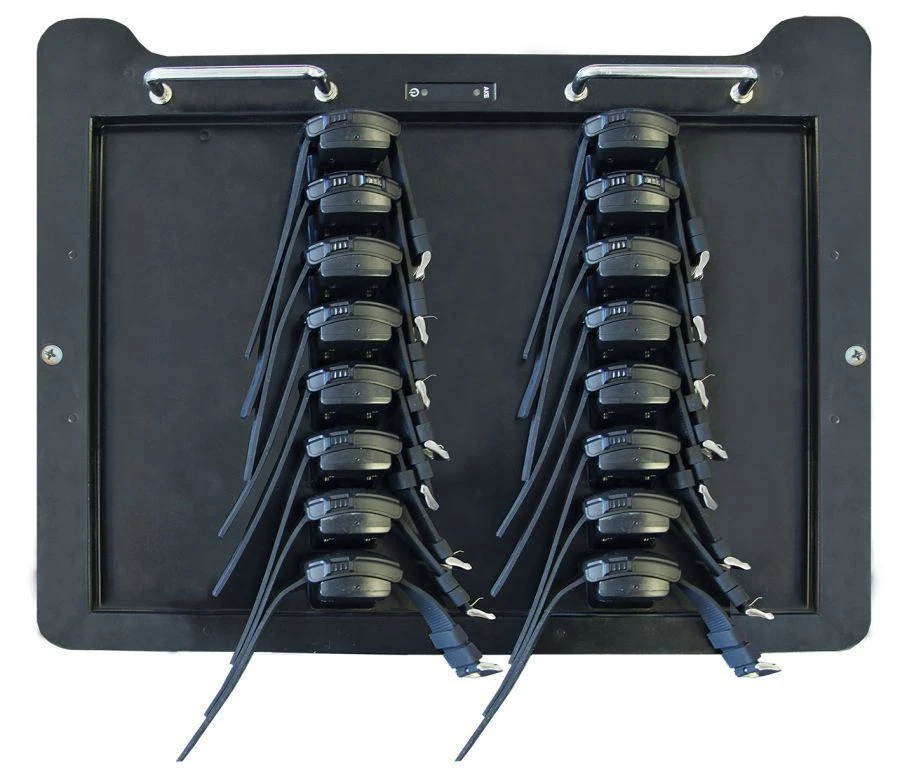

ZU-16M Charging Device for Efficient Charging of Bracelet-PRO Models

Charger ZU-16M esp. L (hereinafter referred to as the Device) is designed for charging Bracelet-PRO esp. L and Bracelet-PRO esp.

DL. The device is powered from the built-in rechargeable battery with voltage of 7.4V and capacity of not less than 6.2 Ah and from an external power source: from the on-board DC car network, from the AC network. The device has a mechanical switch of the built-in battery, which should be switched off when: - when transporting the device; - when storing the device for a long time; - when it is necessary to save as much capacity of the built-in battery as possible.

To switch on the built-in battery it is necessary to remove the main working part from the case by unscrewing 2 screws and turn the switch "INPUT battery" to the position "ON". Battery" switch to the "ON" position. The device has the possibility of removing the main working part from the case, disconnecting the internal cables and mounting this working part on a rack with a frame width of 19 inches standard "Euromechanics" according to GOST R IEC 60297-3-101.
