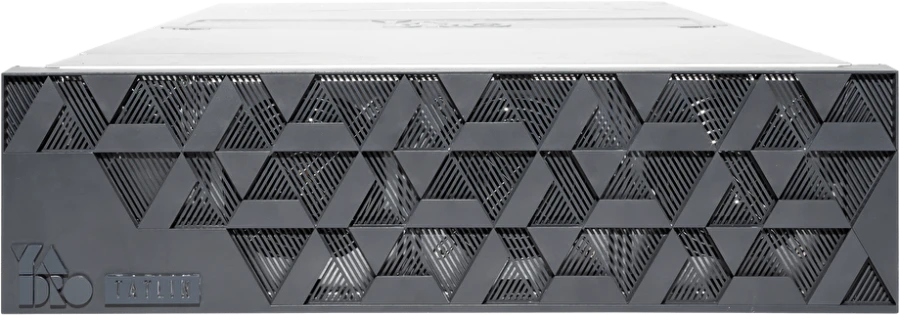

YADRO TATLIN.ARCHIVE.L Data Storage System for Efficient Data Management

Storage Devices

Manufacturer: KNS GROUP LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Data storage system YADRO "Tatlin" (YADRO TATLIN.ARCHIVE.L) RSEN.466535.C01 with Disc expansion modules RSEN.469573.003 Data storage system YADRO "Tatlin" (YADRO TATLIN.ARCHIVE.L) RSEN.466535.C01 with DBS expansion disc modules RSEN.469573.

Description

The YADRO TATLIN.ARCHIVE.L data storage system (SSD) is a specialised solution for efficient storage of ultra-large volumes of data. The main type of access used in the system, is block. This type of access allows you to solve almost any problem, related to data storage with minimal TCO. Unique architecture of the solution allows you to create a single storage space virtually without restrictions on the size of media and their number.

Specifications

Number of storage controllers

2 pcs

Number of cluster nodes

2 pcs

Maximum number of storage controller network interfaces

2 pcs

Maximum total speed of the controller interfaces

Maximum write speed to the storage system

Maximum read speed from the storage system

Maximum number of drives installed in the storage controller enclosure

96 pcs

Maximum number of installable disk expansion modules

14 pcs

Maximum number of drives to be installed

1344 pcs

Hot-swappable drives

Got it

Maximum raw data storage capacity

18816

Maximum capacity of supported HDD hard disks

14000

Power supply capacity of the power supply installed in the controller enclosure

2000 W

Equipment

Storage controller - 2 pcs.; Factory controller - 1 pc.; Disk expansion modules - up to 14 pcs.

Management platform

Tatlin software complex.

Cooling subsystem

Storage controller - 5 × 80 mm hot-swappable fans; Factory controller - 3 × 120 mm fan; Expansion disc module - 3 × 140 mm fan.

Data storage subsystem

Disc expansion modules - up to 14 pcs.

Power subsystem

2 CRPS of 80 PLUS Titanium 2000 W power supply with 1+1 redundancy and hot-swap support.

Available expansion slots

5 PCIe Gen3 connectors (2 x16 connectors with CAPI support, 3 x8 connectors).

RAM

Up to 64GB RDIMM DDR4.

Form factor

Into a standard 19 telecoms cabinet.

Rear I/O panel

2 ports Fiber Channel 32G.

Processors

Up to 4 OpenPOWER8 Turismo SCM.

Weight

23 kg

Form factor, unit

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
