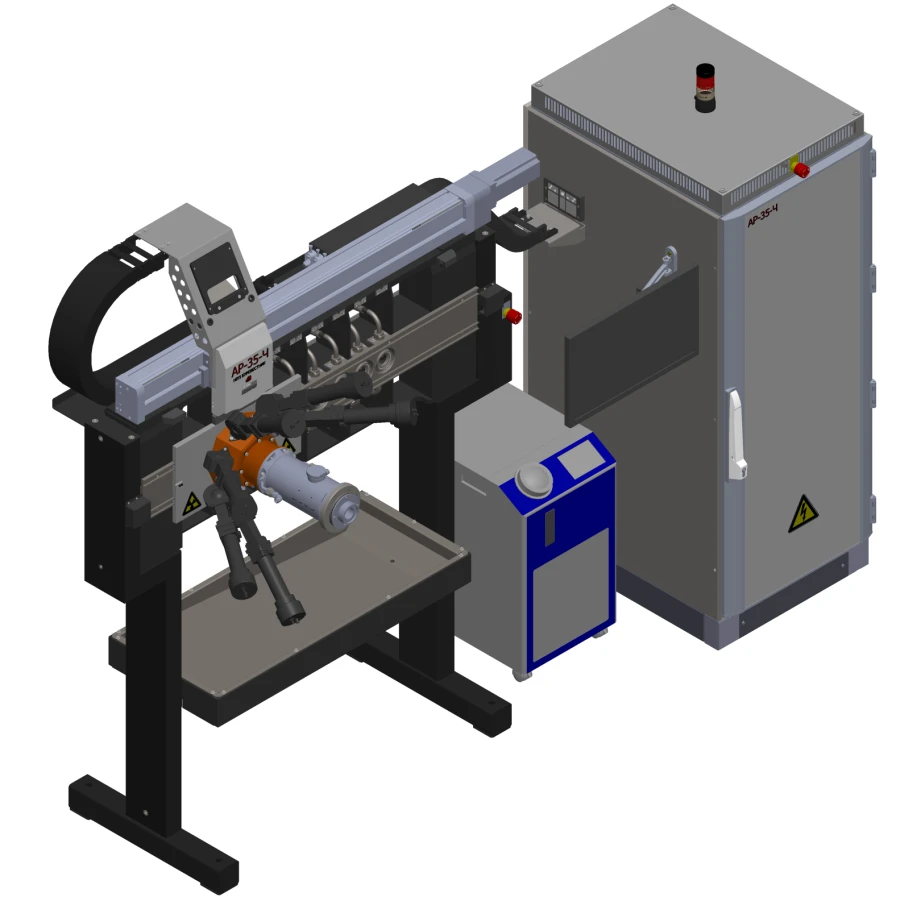

X-ray Analyzer AR Model AR-35 for Accurate Fluorescence Measurement
Manufacturer:
IC "Burevestnik" OJSC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Analyser X-ray AR model AR-35 is a laboratory universal measuring device designed to measure the intensities of analytical lines of X-ray fluorescence of chemical elements included in the pulp, suspensions and solutions, as well as the intensity of scattered radiation of the X-ray tube. The analyser can be used to determine the chemical composition of process media in organisations of non-ferrous and ferrous metallurgy, chemical industry using appropriate analysis techniques.
Specifications
Frequency
SBVVBG
Power supply voltage
230 V
Power consumption
Не более 5000 вольт-ампер
Number of measuring cuvettes
6, 10 or 15 pcs.
Number of spectrometric channels
Либо до 8 спектрометрических каналов, либо до 7 спектрометрических каналов и один ППД
MTBF
Not less than 10000 hrs.
Service life
At least 10 years
Overall dimensions of the spectrometric device DxWxB
2400x915x1960 mm
Dimensions of the Automatic Control Rack DxWxB
600x900x1710 mm
Dimensions of X-ray tube cooling system DxWxB
380x650x660 mm
Weight of the Spectrometric Device
330 kg
Weight Automatic Control Rack
245 kg
Weight of X-ray tube cooling system
55 kg
Measurement of intensities
By means of fixed spectrometric crystal-diffraction channels for elements Ca (20) to U (92)
Number of reference samples
2 pcs
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
