Wireless Expander Module ARG-WL8-EXP for Integrated Security Systems

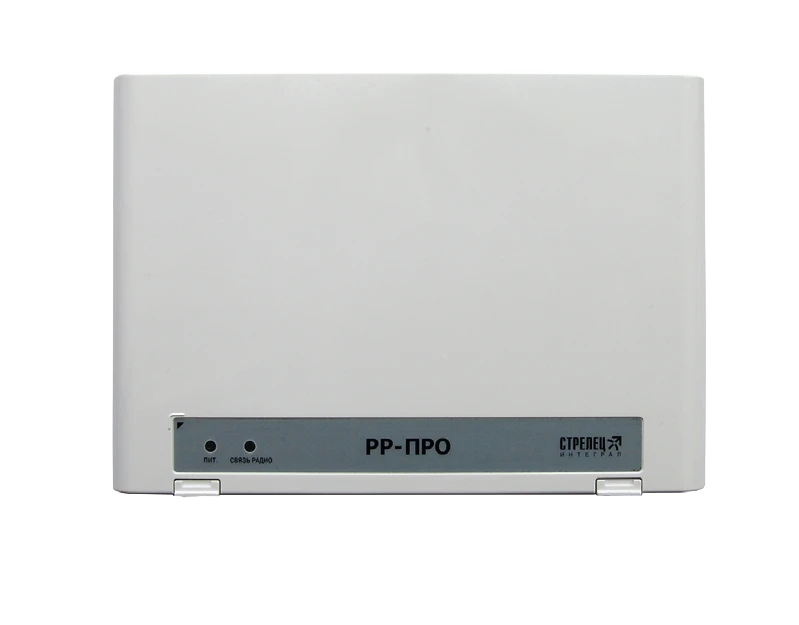

The controller of radio channel devices RR-PRO is a part of the integrated security system "Strelets-Integral". The controller is designed to connect various radio channel devices Strelets-PRO. The radio channel is used for information exchange with Strelets-PRO devices.

The operating frequency range is MHz 868. Maximum radiated power mW 25. Interfaces: USB (MicroUSB connector) pc 1.External power supply voltage V 7.5-28.

Consumption current at 12 V power supply mA 65. Main and backup power supply control inputs. Programmable analogue inputs/outputs of OK type pcs 2.

Power output of OK type pcs1. Explosion-proof version - availability. Protection degree of the shell IP 41.

Overall dimensions mm 210x143x38. Weight kg 0,4. Operating temperature range °?

-30...+55.
