Wideband 2G/3G/4G MIMO Antenna with 20 dB Gain KAA20-1700/2700 BOX

Available for Import

Wideband 2G/3G/4G MIMO Antenna with 20 dB Gain for Modems

Antenna Equipment & Parts

Manufacturer: KROKS PLUS LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

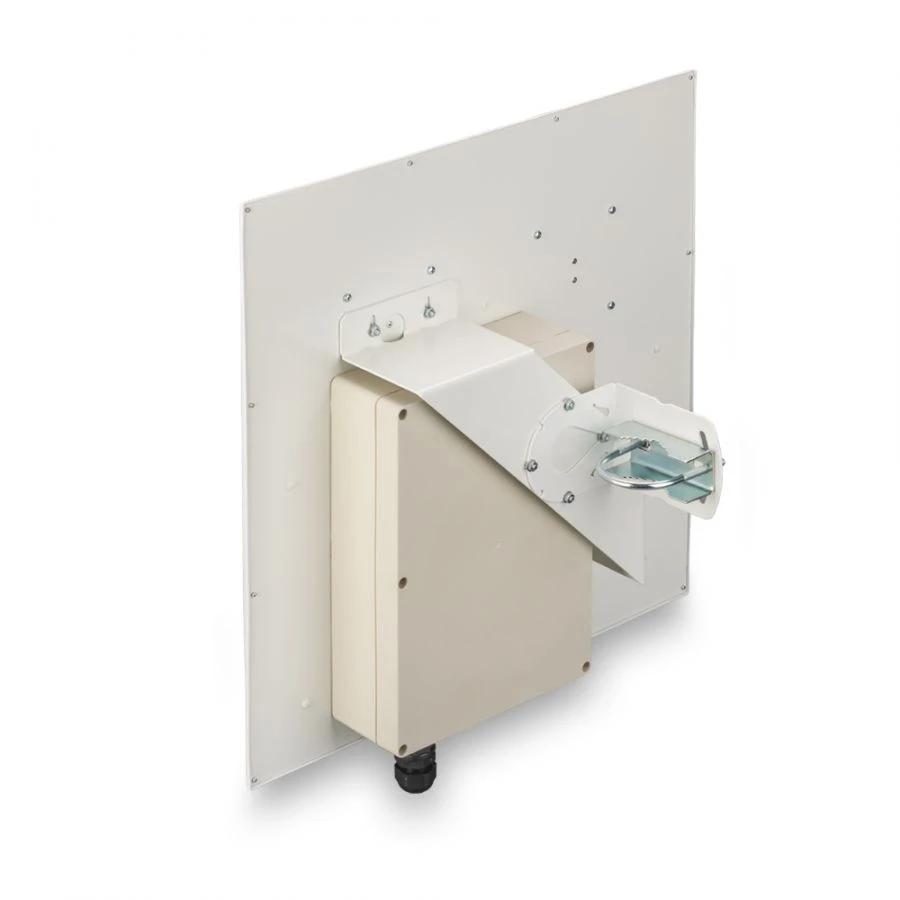

Panel MIMO antenna KROKS KAA20-1700/2700 BOX is designed for use in conjunction with 3G/4G modems, in the frequency range of 1700-2700 MHz. The wide range of operating frequencies of the antenna allows 3G/4G modems to work effectively on the borders of 4G service areas, and the high gain of 20 dB allows you to receive data at a distance of up to 15km. The modem will automatically switch to 3G standard in case of 4G signal absence, and the antenna will provide it with quality signal in both bands.

The antenna is combined with a sealed box, which houses the router and 3G/4G modem. The hermetic box allows to place the whole line of our routers for hermetic box or routers of other manufacturers. There are two SMA (female) high frequency connectors on the back of the antenna.

Two SMA-male (angled) pigtails with SMA(male), U.fl, CRC9, MHF4 connectors are included in the delivery set. The connector type of the pigtail is selectable above the price.

Specifications

Polarization

linear

Connector

SMA-female

Weight

3.9 kg

Minimum value of the operating radio frequency range

1700

Maximum value of the operating radio frequency range

2700

Gain factor

17...20

Standing wave coefficient (VSWR)

1.8

Input impedance

SBVVBG ohm

Maximum permissible power

10 W

Maximum wind load

108

MIMO support

Armoured glass

Port-to-port isolation at least

Built-in memory card slot, support microSD/SDHC/SDXC card (up to 256GB); manual recording/alarm recording

Received signals

UMTS-2100

Type of execution

Panelled, With hermetic box

Length

445 mm

Width

440 mm

Height

110 mm

Mark

Kroks

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
