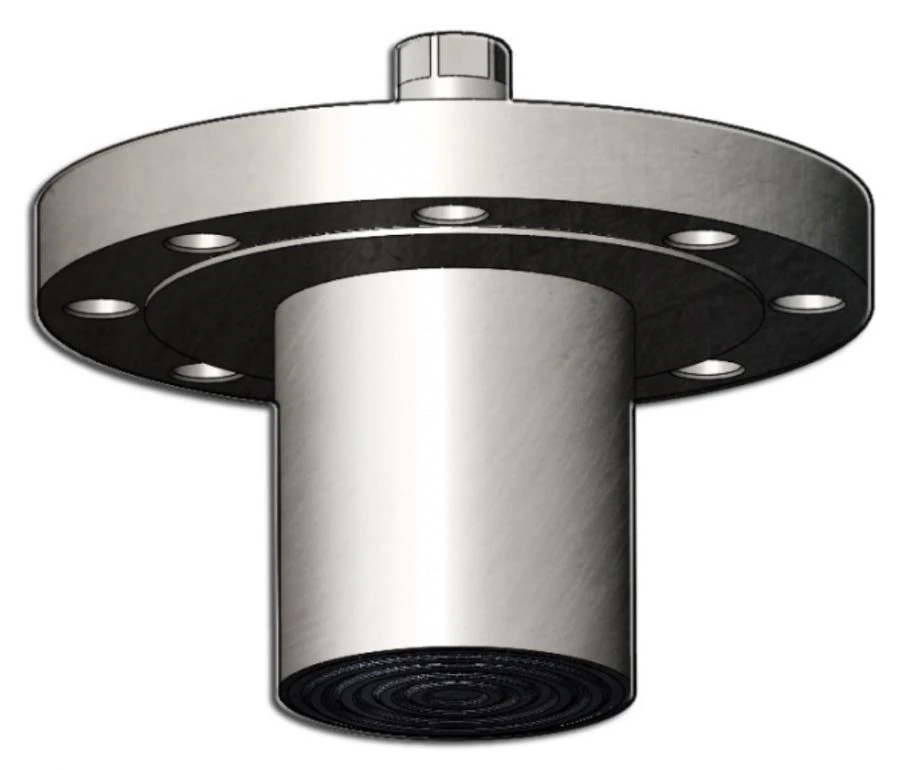

Wide-Range Medium Separator for Protecting Pressure Measurement Instruments

Designed to protect the sensitive element of the measuring device (manometer, sensor, pressure switch, etc.) from a wide range of aggressive, highly viscous, contaminated working media and/or media with high temperature in vessels with double wall. Can be recommended for pressure measurement of both liquid and gaseous aggressive media due to the lack of diffusion through the metal diaphragm. Well suited for highly viscous and high temperature working media.

Welded construction with external positioning of the separating element. The following design variants are possible: with radial instrument or capillary connection; with axial instrument or capillary connection. The separator can be equipped with a mounting flange.

The product can only be filled with liquid using vacuum equipment.
