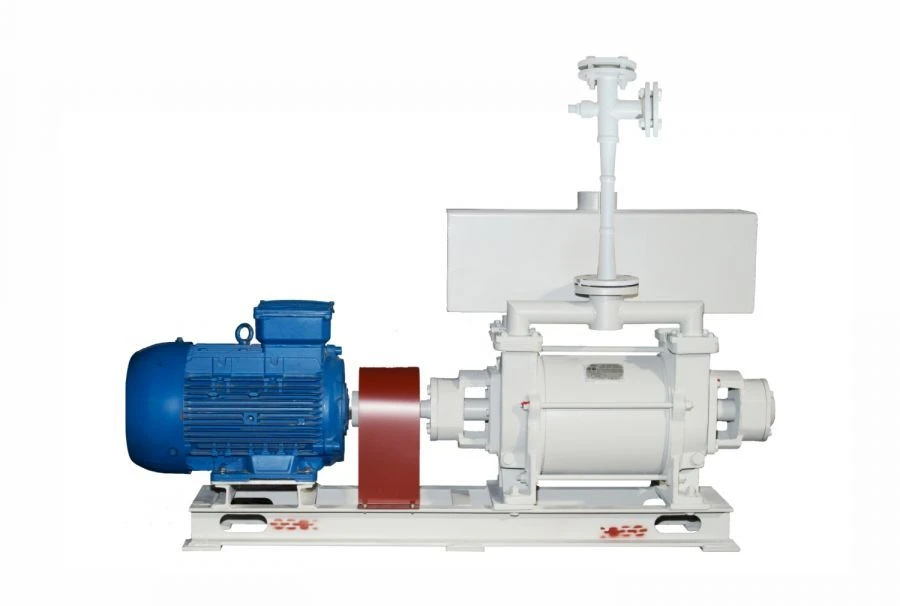

Water Ring Vacuum Unit AVB-6 for Efficient Vacuum Generation

Specialised Vacuum Pumps

Manufacturer:VACUUMASH OJSC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Water-ring vacuum unit AVV-6 is designed to create and maintain vacuum in the range of operating pressures from atmospheric to 10 mm Hg. Water-ring vacuum unit AVV-6 is designed to work on liquids and gases and vapours insoluble in them, not aggressive to materials of the unit construction, not explosion, fire hazardous and not toxic. Type of climatic execution UHL4. Material of execution: from stainless steel or from carbon steel.

Specifications

Weight, kg, not more

415 kg

Overall dimensions d/w/h, mm

1376/390/1050 mm

Water flow rate, dm3/min

12 (+2/-1) dm3/min

Residual pressure limit, KPa

1,33 (+/-0,2)

Capacity reduced to initial conditions at initial pressure 0.005 MPa, m3/min

2 (+/-0.2) m3/min

Capacity reduced to initial conditions at initial pressure 0.04 MPa, m3/min

3 (+/-0.3) m3/min
