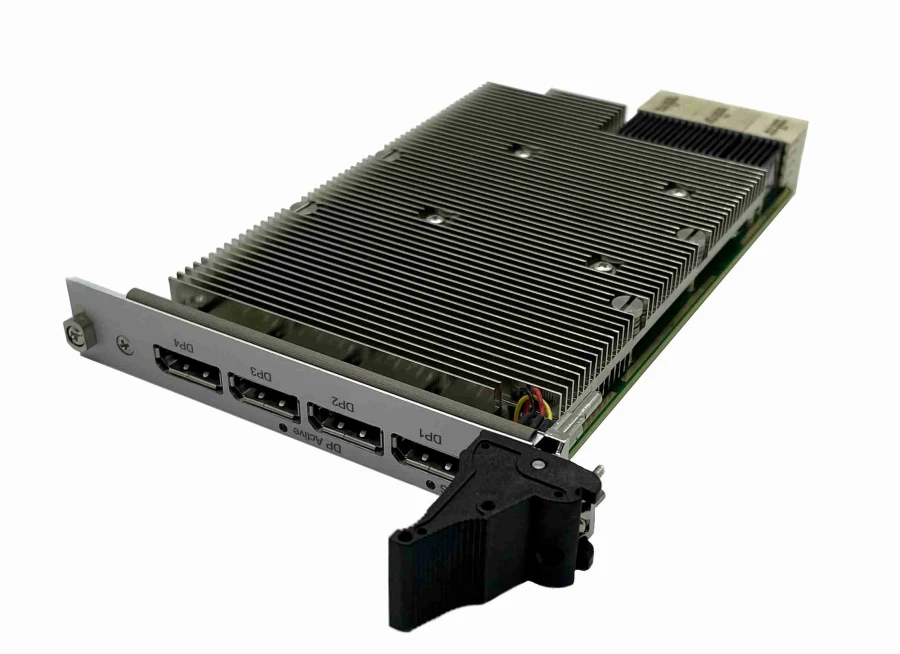

VIM556 Graphic Controller Module for Displaying Graphics in Embedded Systems

Graphic controller module VIM556, VIM556RC is designed for use as part of embedded computing systems CompactPCI Serial 3U and is used to output graphical information to the monitor via DisplayPort interface. Depending on the version, the VIM556, VIM556RC module includes a high-performance graphics card of MXM 3.0 standard - NVIDIA Quadro or AMD Radeon. In the versions of the module VIM556-05, VIM556-06 version of the card standard MXM 3.1.

Using the module VIM556, VIM556RC, computing system can perform high-performance multi-threaded computing and display high-resolution graphical information simultaneously on multiple monitors (up to four) via DisplayPort 1.2 interface with support for Multi Stream Transport and Dual Mode Display and via DisplayPort 1.4 interface with support for Dual Mode Display in the version of the module VIM556-05, VIM556-06.
