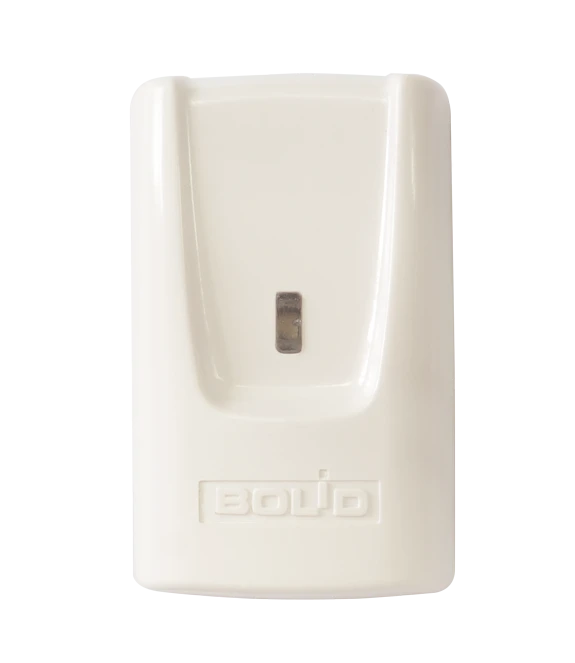

Vibration Security Detector "Vulkan" ACDR.425139.002

Available for Import

Vibration Security Detector "Vulkan" for Effective Wall Protection

Intrusion and Fire Detectors

Manufacturer: BOLID CJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Designed to detect an attempt of deliberate destruction (burglary) of concrete walls and floors at least 0.12 m thick, brick walls at least 0.15 m thick, wooden structures with material thickness from 20 to 40 mm, plywood at least 4 mm thick, chipboard structures at least 15 mm thick, standard metal safes, cabinets, doors and ATMs with the subsequent issuance of an alarm notification to the monitoring station or PKK by opening the alarm loop contacts of the executive relay.

Specifications

Power supply voltage

6 to 17 V

Average current consumption

8 mA

Sensitivity

0.03

Maximum detectable vibration frequency

3200

Protected surface area (solid concrete, reinforced concrete, brick structure)

up to 30

Protected surface area (wooden structure)

up to 12

Protected surface area (metal cabinet, door, upper cabinet of ATM)

up to 6

Protected surface area (safe, bottom cabinet of ATM)

Up to 3

Detectable tilt angle

5 and more grads

Protection degree of the shell according to GOST 14254-2015

IP30

Operating temperature range

-20 to +50 °?

Overall dimensions of the device

68x42x19,5

Instrument weight

max. 0.05 kg

Average lifetime of the device

10 year

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
