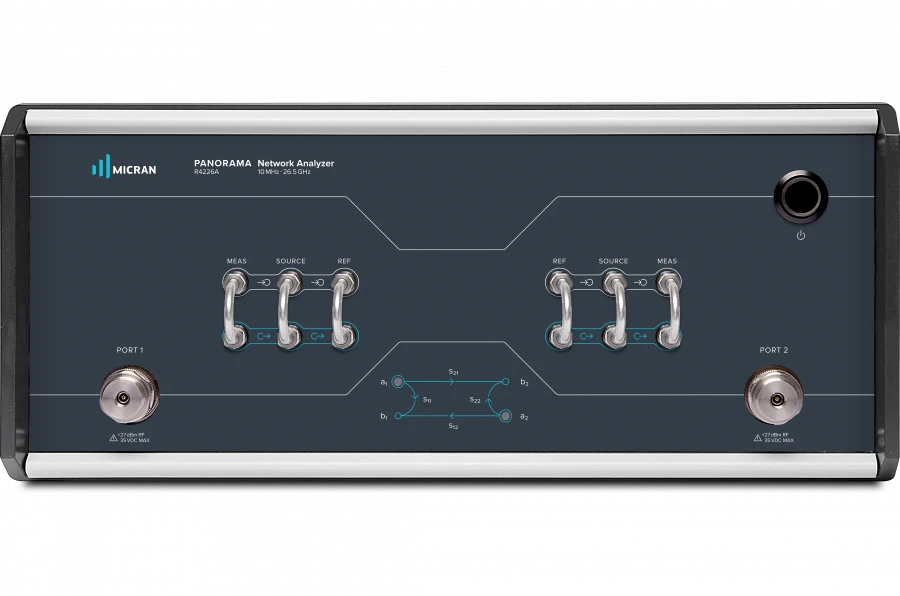

Vector Circuit Analyzer R4226A for Enhanced Circuit Analysis

The vector circuit analyser P4226A has an extended set of hardware features, as well as a completely new software interface xVNA. The xVNA software significantly speeds up the operation of the vector circuit analyser. Field of application: research, adjustment, testing, control and production of RF and microwave devices used in radio electronics, communications, radar and measurement technology. The possibility to control vector circuit analyser P4226A via SCPI commands allows to integrate the device into automated control and measurement complexes of various complexity. Technical characteristics: frequency range from 10 MHz to 26.5 GHz, dynamic range up to 135 dB at IF filter bandwidth of 10 Hz, wide range of output power level setting from -50 to +10 dBm, specialised multi-channel software xVNA - all measurements in one device.
