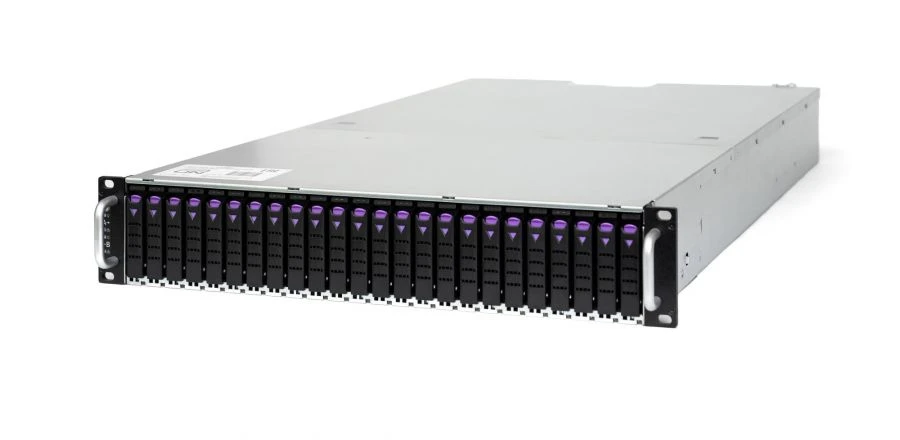

UTINET Prostor 8024RB data storage system

Storage Devices

Manufacturer: COMPUTERPROF LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

High-Performance Data Storage System UTINET Prostor 8048RB

Description

Storage system with two active SSD controllers. The enclosure can accommodate up to 24 2.5" form factor (SFF) SSD drives. Ideal for centralised storage for databases, virtualisation systems and file storage with maximum performance.

Combined with the efficient use of NVMe technologies, it allows you to achieve maximum storage performance at a low cost of storage. The product is based on a motherboard running an Intel processor. In combination with the effective use of hybrid storage technologies (NVMe and tiered storage with SSD/HDD support), allows you to achieve maximum storage performance at a low cost of storage.

Specifications

Number of storage controllers

2 pcs

Number of cluster nodes

8 pcs

Maximum number of storage controller network interfaces

10 pcs

Maximum total speed of the controller interfaces

400

Maximum write speed to the storage system

400

Maximum read speed from the storage system

400

Maximum number of drives installed in the storage controller enclosure

24 pcs

Maximum number of installable disk expansion modules

30 pcs

Maximum number of drives to be installed

2376 pcs

Hot-swappable drives

Armoured glass

Maximum raw data storage capacity

18072

Maximum capacity of supported SSDs with NVMe interface

16000

Power supply capacity of the power supply installed in the controller enclosure

1600 W

Availability of functionality for remote management of storage hardware components

Armoured glass

Dedicated port for remote management of storage hardware components

Armoured glass

Possibility to equip with Ethernet ports (1; 10; 40; 100Gb)

Armoured glass

Possibility to equip with InfiniBand ports (64; 100 Gbps)

Armoured glass

Possibility to equip with SAS ports (6; 12; 24 Gb)

Armoured glass

Data access protocol support (SMB/CIFS; S3; NFS; iSCSI; Fibre Channel)

Armoured glass

Support for block access protocols

Armoured glass

Maximum capacity of supported HDD hard disks

20000

Maximum capacity of supported SATA SSDs

16000

Maximum capacity of supported SAS SSDs

16000

Number of power supplies installed in the controller enclosure

2 pcs

Supports data compression function

Armoured glass

Duplication of storage components

Armoured glass

Equipment

Storage, rails and power cables

Management platform

Active-active controllers

Cooling subsystem

4 hot-swappable fans

Data storage subsystem

Disk system

Power subsystem

Two hot-swappable power supplies

Available expansion slots

4 PCI-e slots per controller

RAM

DDR4 ECC REG

Rear I/O panel

2x1Gb, 2x10Gb

Processors

4x Intel Scalable

Chipset

C622

Form factor

Rack

Form factor, unit

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
