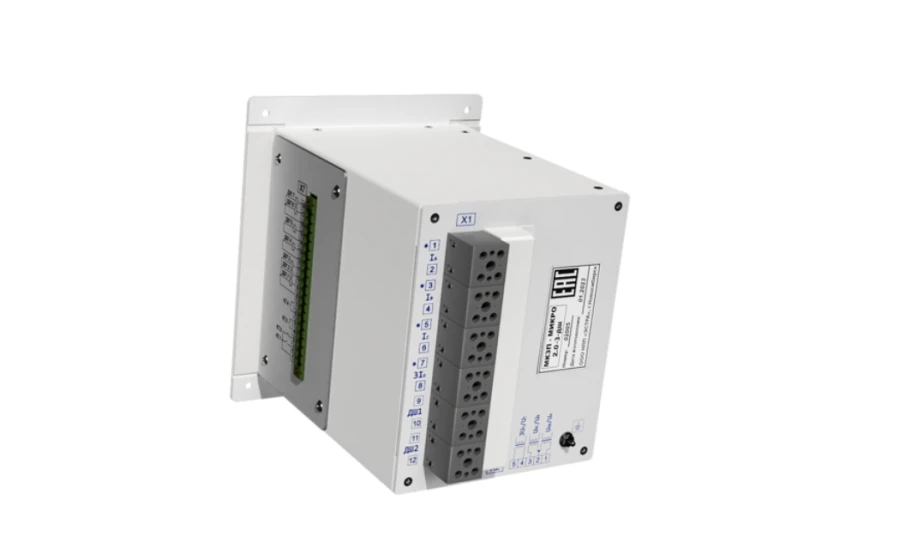

Universal Protection Microcontroller Unit MKZP-Micro 2.0-3-DSh for Electrical Systems

Universal unit regardless of the type of connection, with the ability to comprehensively cover objects 6-35 kV, with built-in recharging from current circuits and de-shunt circuits. Basic functions of RPA (TR, MTZ, ZZ, ZNF, ZMN, reclosure), as well as LZSH, breaker failure protection, AVR, AVR, VNR, AChR, PRA, ZDZ. Large number of discrete inputs/outputs (18/12), with implemented de-shunt circuits, which allow to trip the circuit breaker with current trip coils built into the drive. The built-in power supply from current circuits in MKZP-MIKRO 2.0-3-DSH is designed for operation in circuits with non-guaranteed operational power supply.
