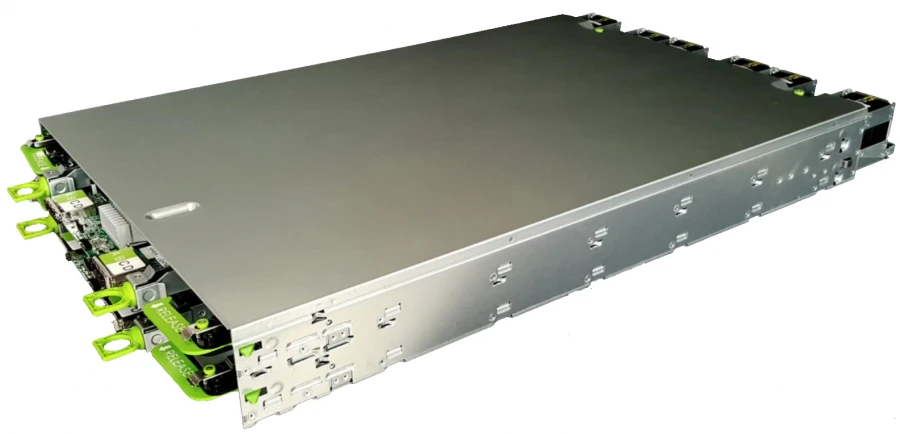

Universal Plug-in Module for Computing Systems and Data Storage - Enhance Your Data Management

Data Interface Devices

Manufacturer: DELTA SOLUTIONS LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Universal plug-in module for computing and storage systems is a specialised horizontally scalable data storage, which is designed for storage and high-speed transfer of large amounts of information. JBOF allows to organise information storage on solid-state NVMe-drives with optimal resource allocation and bandwidth of at least 13.3 Gb/s. The JBOF storage system is designed with hot-swappable SSDs. This feature allows the replacement, or installation of additional NVMe SSDs, without the need for a complete power shutdown, minimising disruption to system operations.

Specifications

Type of high-speed interface

PCIe 3.0

Storage

60 slots m.2 nvme ssd (2280/22110); 30 slots 2.5" u.2 7-15 mm nvme ssd

Expansion connectors

4 groups of four (pcie 3.0 x4) mini-sas hd (sff-8644)

Expansion card

Map retimer (server-side)

Remote control

Bmc (connection via retimer card) or rj-45 port

Power supply

From the live bus of the server rack with direct current and 12 V voltage

Cooling system

6 fans

Cables

Mini-sas hd cables

Operating system

OS supported by client servers

Dimensions (W x L x H)

2OU, 536 mm x 795 mm x 93,5 mm

Weight (net)

38...55 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
