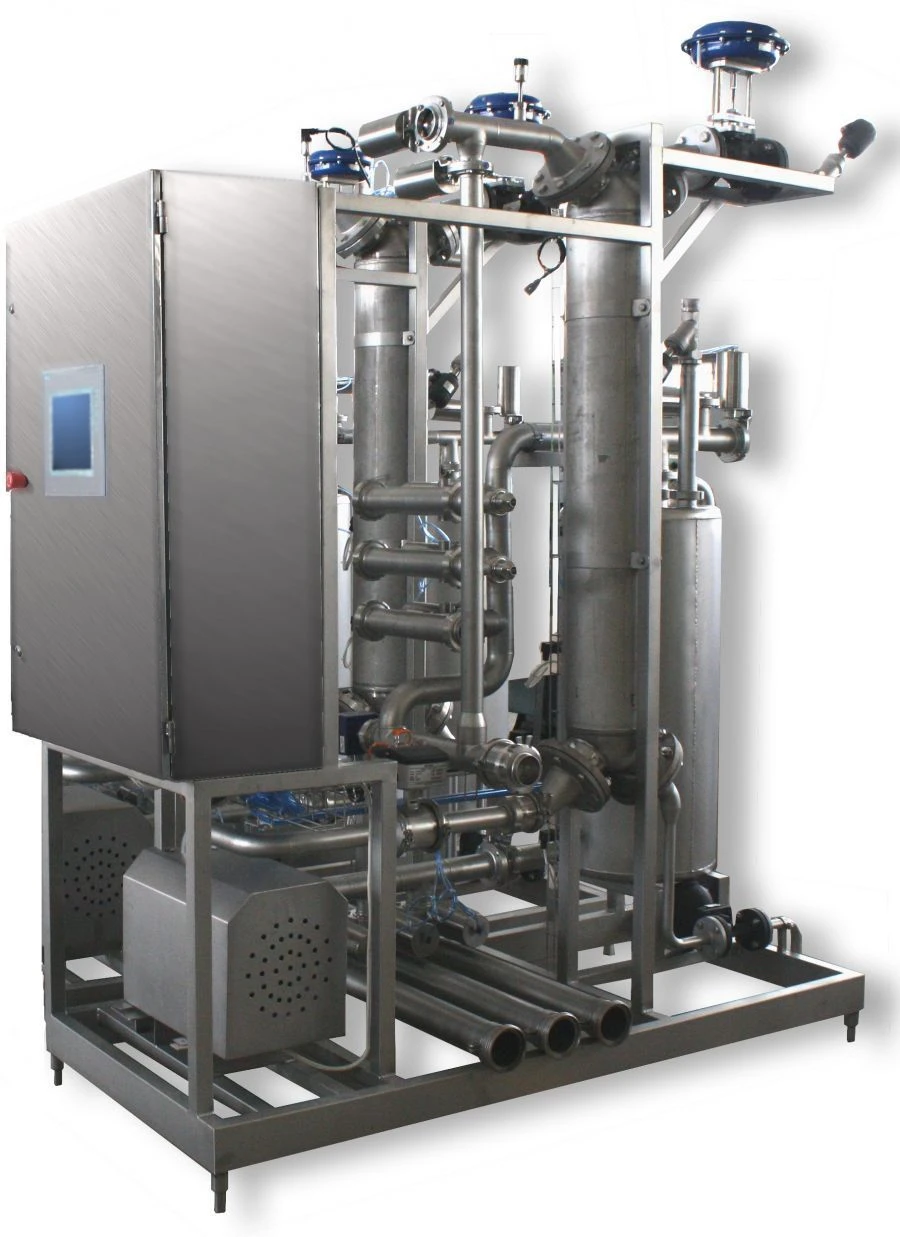

Universal Circulation Cleaning Stations UCM-10 for Effective Equipment Cleaning

SIP washers are designed for circulating washing of tanks, pipelines, heat exchangers, pasteurisation and cooling units and other equipment. Capacity up to 10 m3/h Method of heating the washing solution -Smeevicheskaya jacket in the tank (heat-exchange apparatus - optional). Tank two/three/four-sectional (thermo-insulated tank, divided into sections, inner bulb - stainless steel AISI304/316; partition steel AISI30/316; lining - stainless steel AISI430/304.

Equipped with vibration limit sensors, thermal resistance, WBI sensor. Temperature of alkaline and acidic washing solutions-75-80?C, 65-70?C Temperature of cold water -10-20?C Warm water temperature -34-40?C Sterilising water temperature -90-95?C Consumption of tap cold water, average, not more than - 17,6 m³/h, Occupied area, not more than - 18,5 m², Weight, not more than -3560 kg, Modular system -No Washing solution application- In manual mode. Method of control...
