Available for Import

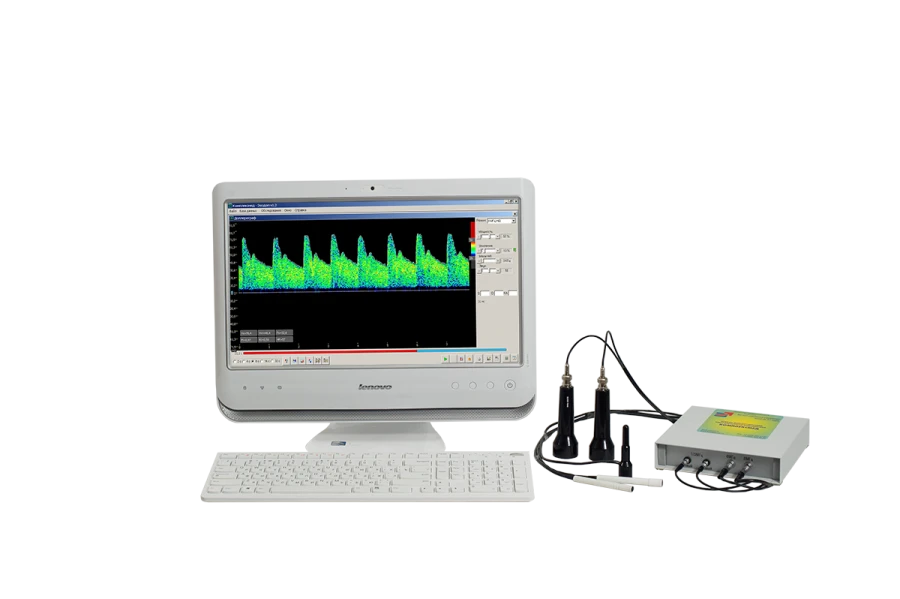

Ultrasonic Doppler Blood Flow Velocity Analyzer with Dual-channel Echoencephalograph for Medical Use
Manufacturer:
ENGINEERING CENTER "COMPLEX-M" LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Analyser ultrasonic Doppler blood flow velocity with functions of two-channel echoencephalograph, computerised, small-sized in an external desktop case with a monoblock.
Specifications
Number of Doppler channels
4 pcs
Probing depth
5...120 mm
Number of automatically calculated Doppler system parameters
10 pcs
Sound reproduction of Doppler frequencies with separation by blood flow direction
Armoured glass
Spectral analysis of Doppler signal + envelope
Armoured glass
Automatic saving of the signal spectrogram (Doppler system) in the memory
The last 32
Freeze frame
Armoured glass
Multi-window operation mode (Doppler system)
Armoured glass
Number of channels of the echoencephalography system
2 pcs
Operation modes of the echoencephalographic system
A+A echograms
Probing depth of the echoencephalographic system
220 mm
Radiation amplitude of the echoencephalographic system, not more than
100 V
Radiation frequency of the echoencephalography system
1
Resolution capacity of the echoencephalographic system
2 mm
Measurement error of linear dimensions of the echoencephalographic system
0.2 mm
Number of automatically calculated parameters of the echoencephalographic system
17 pcs
Multi-window operation mode of the echoencephalography system
Armoured glass
Automatic generation of a transmission tag (echoencephalographic system)
Armoured glass
Freeze frame of the echoencephalographic system
Armoured glass
Automatic saving of the echogram in the memory
The last 32
Automatically saves user settings at shutdown
Armoured glass
Saving the survey results in the database and printing them out
Armoured glass
Weight
1 kg
Overall dimensions, not more
180?165?40
Complexmed" software
Armoured glass
Research modes of the Doppler system
1. transcranial: using a 2MHz probe
Measured velocity range of the Doppler system, cm/sec
-400...400
Sampling volume in transcranial mode of the Doppler system
3...20 mm
Radiation amplitude in transcranial mode of Doppler system, not more than
25 V
Structural design
In external desktop housing with monoblock
Nutrition
from the medical adapter
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
