Train Speed Control Device UKSDP for Monitoring Train Speeds

Railway & Traffic Control Equipment

Manufacturer: ELKOM LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

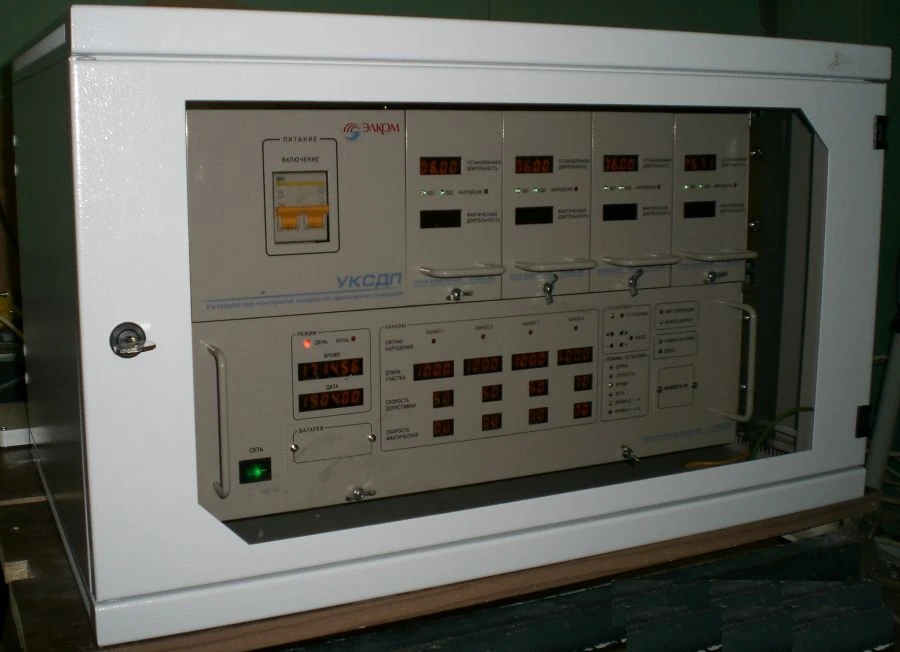

The train speed control device UKSDP (hereinafter referred to as UKSDP) is designed to measure the actual speed of passenger or economic trains on controlled sections of track. The product is designed for operation in tunnels and premises of underground railway. The shell of the product design provides protection against penetration of dust and water jets.

In terms of resistance to climatic factors during operation the measurement and control units correspond to classification group K1 according to OST 32.146-2000, but for operation at temperatures ranging from +0 deg. C to +40 deg. C, without frost and dew.

The optical sensor corresponds to classification group K8 according to OST 32.146-2000 in terms of resistance to climatic factors during operation, for operation at temperatures ranging from -40 deg. C to +50 deg. ?.

UKSDP consists of the following blocks and equipment: UKSDP cabinet. Control and monitoring unit BUK. Measurement units BI - from 1 to 4 pcs.* Diffusion...

Specifications

Designation

UKSDP

Power consumption, W, max.

100 W

Length of the connecting cable from the measurement unit to the sensors, m, not more

2000 m

DC resistance of cable wires, ohms, not more

500 ohm

Number of speed measurement channels, pcs.

4 pcs

AC mains supply voltage, in range of

90...260 V

Measured train speed

10...90

Accuracy of speed measurement

Setting the permissible speed of a train on a controlled section of track

Armoured glass

Set speed display and measured speed display

Armoured glass

Counting error per day, max.

Non-volatile memory storage of setting data and speed violation data

Armoured glass

Battery discharge monitoring and indication

Armoured glass

Input of installation data, speed violation log, power violation log, current past speed data

Armoured glass

Weight of the UKSDP, not more than

25 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
