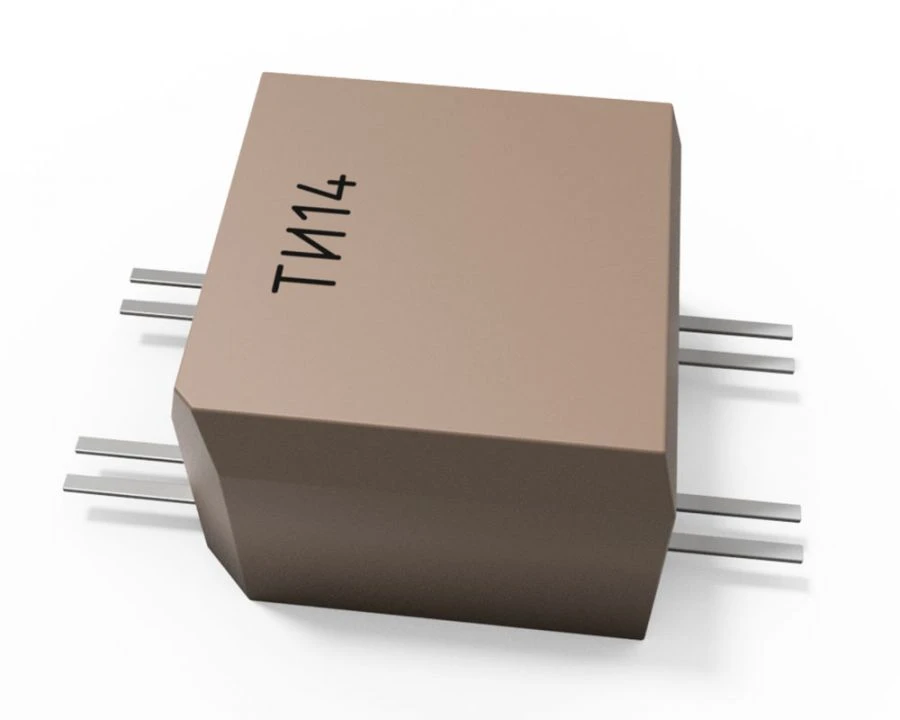

TI14 Type Impulse Transformers for Power Converters (24V)

Electric Transformers

Manufacturer: PJSC "MSTATOR"

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Transformers pulse type TI14 are designed for operation in the scheme of power converter with independent excitation and supply voltage 24V. Quality category "VP".

Specifications

Maximum product of pulse duration by input pulse voltage

600(×10^-6)

Capacitance between windings I-III; I-IV, not more

20(×10^-12)

Capacitance between windings I-II, not more

150 (×10^-12)

Scattering inductance, not more

130 (×10^-6)

Magnetizing current, not more

60 (×10^-3) A

Insulation resistance, not less

500 (×10^6) ohm

Electrical strength of insulation: test alternating voltage (f=50 Hz) between windings I-III,IV;II-III,IV

1500 V

Electrical strength of insulation: AC test voltage (f=50 Hz) between windings I-II; III-IV

300 V

Number of transformer windings

4 pcs

Transformation ratio

0.25

Operating temperature range

-60...85 °C

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
