Available for ImportThermoelectric Multi-Strand Cable KMTGVEV for Industrial Applications
Manufacturer:REЖКАБЕЛЬ LLC
Price:Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Available Models
Heat-resistant multicore thermoelectrode cables with multi-conducting conductors, KMTGVEVT gradeMulticore thermoelectrode cable with multiwire conductive cores in cold-resistant version, KMTGVEB-HL gradeMulticore thermoelectrode cable with multi-conducting conductors, KMTGVEBVng(A) gradeMulticore thermoelectrode cable with multi-conducting conductors, KMTGVEVEVTng(A) gradeMulticore thermoelectrode cable with multi-conducting conductors, KMTGVEVEVng(A)-HL grade
Description

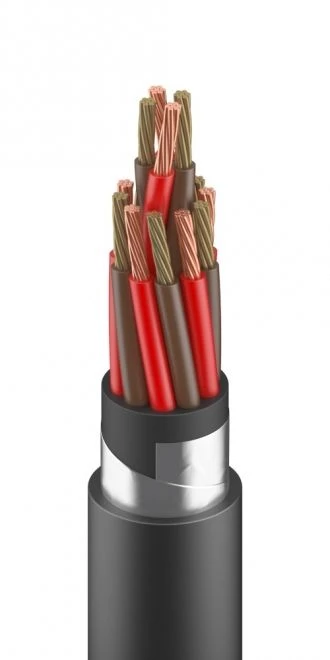

Thermoelectrode cable with flexible conductive cores of metal and alloy or alloy pair with nominal cross-section from 0,50 to 2,5 mm2, with number of cores and pairs from 2 to 36 in the screen of alumoflex or alumopolyethylene film, with polyvinylchloride insulation in polyvinylchloride sheath. They are intended for fixed connection of thermoelectric converters (thermocouples) to measuring instruments.
Specifications
Designation of copper and alloy or alloy pair
CA - Chromel-alumel
Nominal voltage
380 V
AC voltage test with nominal frequency of 50 Hz for 5 minutes between cores
1000 V
Electrical insulation resistance, recalculated per 1 km of length under normal climatic conditions, not less, MOhm
5000
Operating temperature range
-40...70 °C
