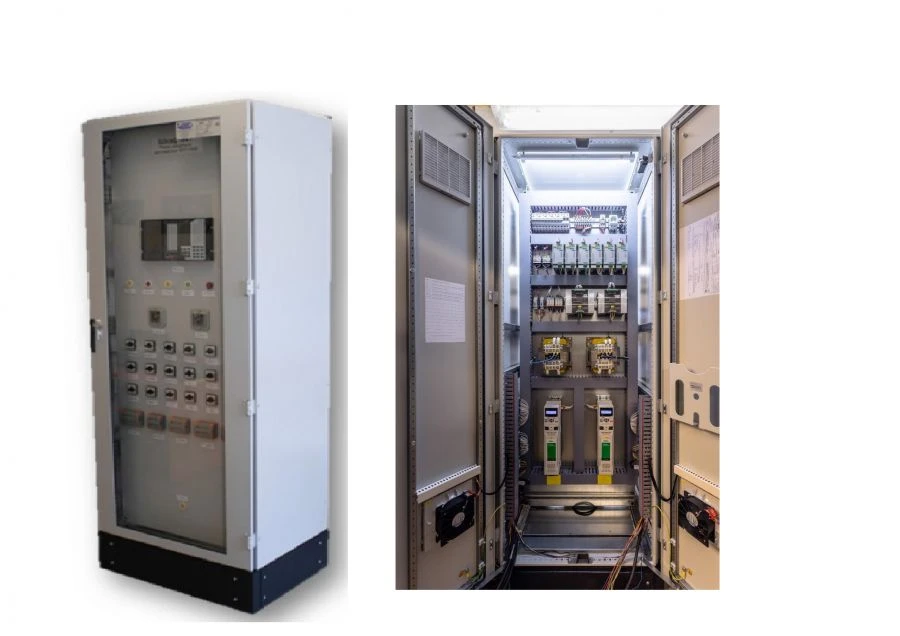

Tecon Automated Control Systems for Electrical Equipment (ASU Tecon ETO)

Available for Import

Tecon Automated Control Systems for Efficient Management of Electrical Equipment

Automatic Control Devices

Manufacturer:TEKON-ENGINEERING OJSC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

TEKON-Engineering develops and serially produces automated control systems "TEKON" for control of electrical equipment (hereinafter referred to as ACS "TEKON" ETO), designed to ensure the protection of power units with complex operating modes of primary equipment.
TECON ETO ACSs use TECON 300 series relay protection and automation devices (TECON 300 URZA) as relay protection and automation (RPA) and emergency automation (EA), designed for use on all types of primary equipment, including, but not limited to, high-power electric motors, feeders, power lines, power transformers, reactors, busbars, generators, generator-transformer units.
ACS "TECON" ETO performs the functions of:
measurement of AC voltage and power, frequency, active, reactive and total power, measurement of DC power;
event registration;
relay protection and automation (RPA) of power plant equipment, by...

Specifications

Power supply voltage

220 V

Interface type

Data/information transfer over Ethernet using IEC 61850 protocol

Availability of a memory card slot

Number of channels

50000 pcs

Interface type for communication with I/O modules

Switching voltage range

250 V

Maximum switched current

40 A

Compatible with modules

Number of Ethernet ports

1000000000 pcs

Number of interfaces RS-485/422/232

1000000000 pcs

Measured frequency range

45...55

Composition

1. URZA TEKON Z00 2. RZA TEKON 3000 switchgear and controlgear cabinets/connection controllers. 3. Archive server cabinets, gateway server cabinets 4. Workstations (ARMs) 5. SCADA-system "TECON", v.2.0. 6. SCADA software complex "Tekon", v.3.0.

Software platform

Tekon 300 devices: OS TeNIX (Linux-compatible); -servers, gateways and workstations with pre-installed SCADA-system "Tekon 300". SCADA-system "Tekon", v.2.0: OS MS Windows -servers, gateways and ARMs with pre-installed SCADA software complex "Tekon", v.3.

Hardware platform

- Tekon 300 devices: RISC-compatible architecture; - Servers, gateways and APMs: Intel-compatible architecture.

Structure

Upper level - archive servers (main and backup), ACS ETO ARM, SCADA-system "Tekon", software complex SCADA-Tekon 3.0, data exchange network; Middle level - unified time servers (main and backup), ACS ETO gateways (main and backup).

Minimum program cycle

1...3

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
