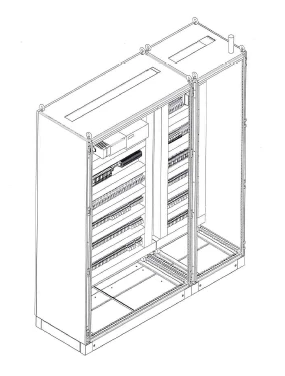

Technology Equipment Control Panel - SHU NO Series Available for Import

Technology Equipment Control Panel - SHU NO Series for Efficient Pump Management

Low-Voltage Electrical Panels
Manufacturer: INGENIUM LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Available Models

Shields and control cabinets of technological equipment of series - ShchU, type - VO.

Description

SHU/NO - control panel (cabinet) of pumping equipment control. Complete low-voltage devices. The control system is based on the principle of automatic maintenance of set parameters (pressure, temperature, humidity).

The system is controlled by standard controllers and programmable controllers. It is equipped with frequency regulator for control of compressors, condenser and air cooler fans, pumps. Availability of remote control and monitoring system.

A set of operational documentation (operation manual, passport) is attached. The products are labelled. Warranty period of operation - 12 months.

Specifications

Length
275...6500 mm
Assignment
Process equipment control
Equipment
Shield (cabinet) complete with equipment and devices
Mark
NO
Size; mm
from 370x275x140 to 2200x6500x800 mm
Current capacity
2.4-3200.00 kW
Material
Steel
Modules
Armoured glass
By explosion protection
no
Degree of protection against external influences
IP54
Material
Copper, plastic
Type of explosion protection
no
Width
140...800 mm
Height
370...2200 mm
Explosion protection
no
Color
gray
Material of manufacture
Copper, plastic
Housing material
Steel
Degree of protection
IP54
Temperature class
?6
Climatic version
UHL
Type
SHU/NO

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
