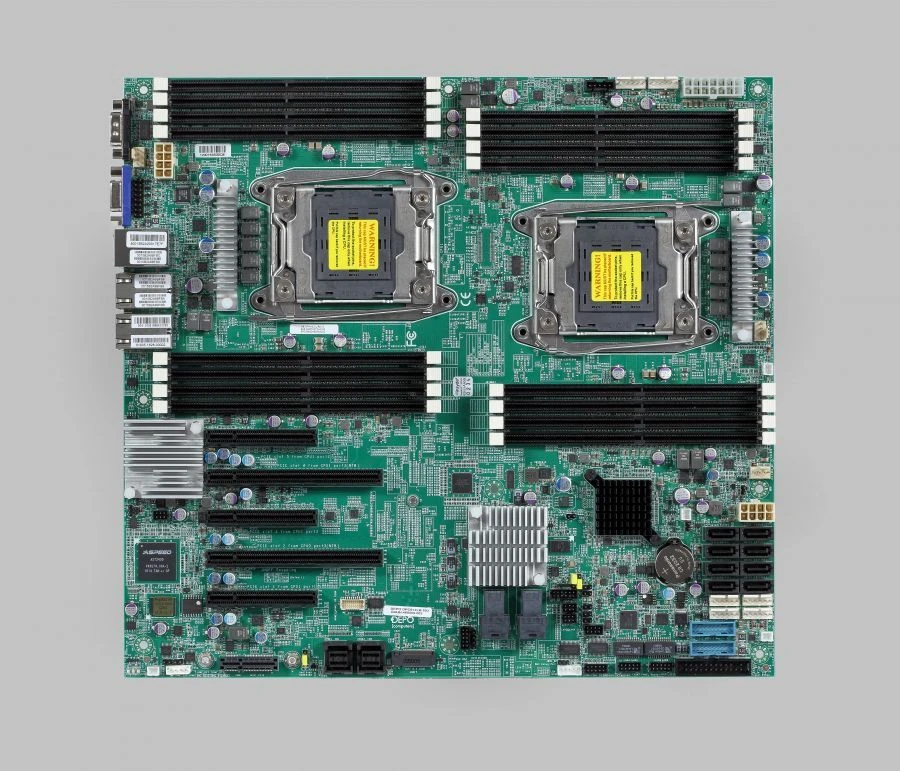

System Board DPC612-LB for Servers and Data Storage Applications

System board DPC612-LB is designed for use in servers, storage systems and other electronic devices manufactured by DEPO Electronics Ltd. The board is based on Intel® C612 chipset, equipped with Intel® i350 Gigabit Ethernet controller, one M.2 M-Key SATA/PCIe x4, eight SATA connectors with RAID 0/1/5/10 support, controller, S-Dub (VGA) video output, COM port, two USB3 ports on the back panel, and connectors for additional USB ports. It has expansion slots three PCIe x16 Gen.3, two PCIe x8 Gen.3, and one miniPCIe
