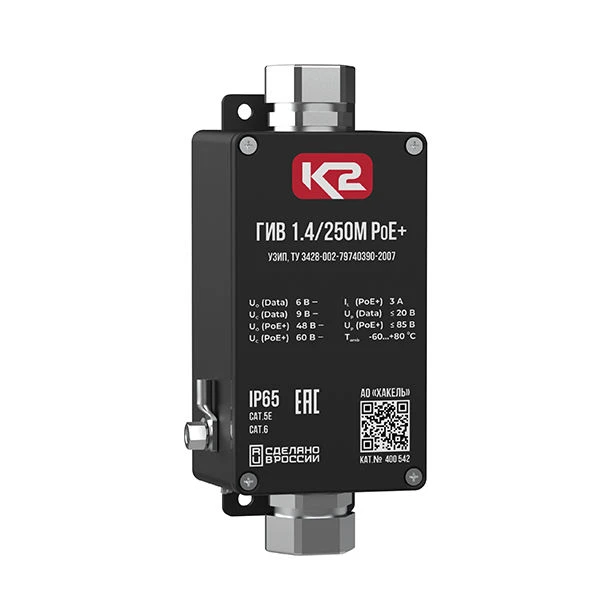

Surge Protection Device GIV 1.4/250M PoE+ for Equipment Protection from Surges

UZIP GIV1.4/250M PoE+, TU 3428-002-79740390-2007 are designed for protection against impulse overvoltages (lightning protection, protection against electrostatic discharges, etc.) of the equipment of structured cable networks of categories 5e/6 within 1 - 2 lightning protection zones in accordance with GOST R IEC 62305-1 with Ethernet interfaces of 1000BASE-T (IEEE 802.3ab-1999), 10GBASE-T (IEEE 802.3an-2006) standards. The devices support power over Ethernet (PoE, PoE+) with A and B power supply schemes. They are designed for installation in the break of the protected line.

The main application is protection of outdoor Ethernet equipment (IP video cameras, etc.) outdoors (on walls, poles, masts and towers). They are produced for nominal operating voltage Uo= 6 V (data); 48 V (power pairs); nominal current IL= 3 A. Capable of carrying rated discharge current In(8/20) up to 2 kA.

Data transfer rate 1/10 Gbit/s. Made in aluminium housing, IP65.
