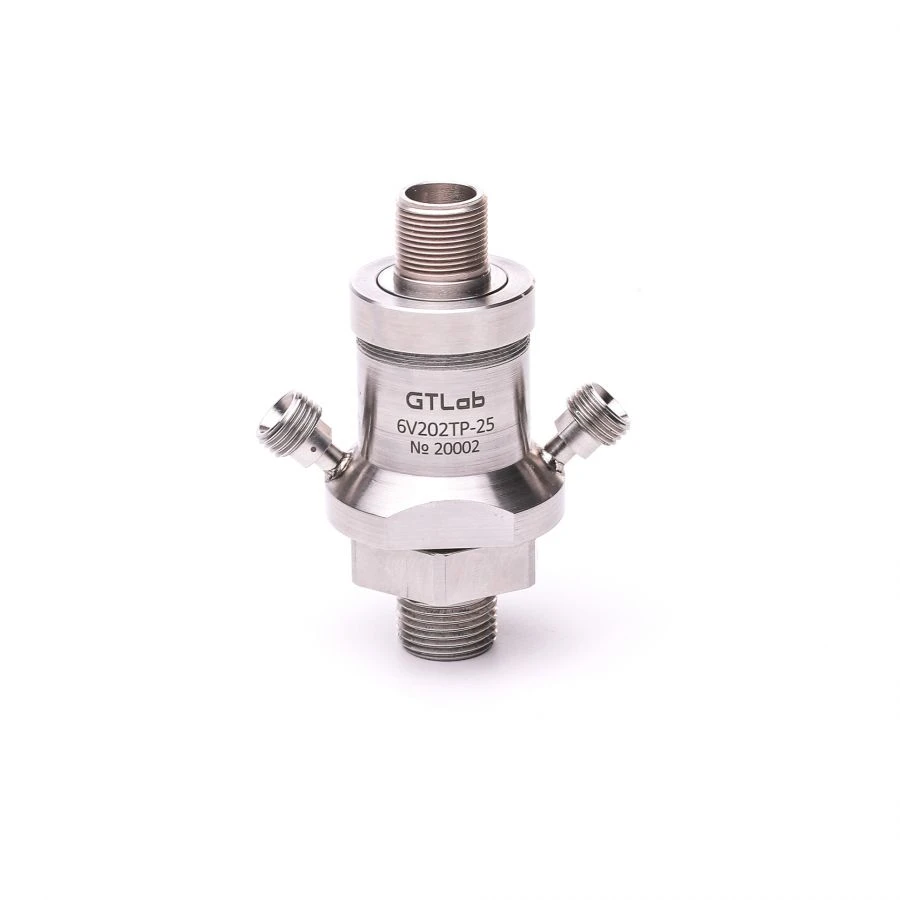

Static-Dynamic Pressure Sensor for Internal Combustion Engines 6V202TP-XX

Available for Import

Static-Dynamic Pressure Sensor 6V202TP-XX for Engine and System Monitoring

Vibration Measurement Equipment

Manufacturer: GTLAB LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Static dynamic pressure sensor 6V202TP-XX-5

Description

Pressure sensors 6V202 are used for research and control of dynamic processes in internal combustion engines, gas turbine engines, hydraulic and pneumatic systems. They are designed to measure pressure in shock and detonation waves in gas and liquid aggressive media at temperatures up to 1000 °C with water cooling and up to 300 °C without cooling. They provide registration of full pressure in the frequency range up to 8 kHz, including static component.

Specifications

Measuring range

-0.1 to 1.6 MPa | -0.1 to 2.5 MPa | -0.1 to 6 MPa | -0.1 to 16 MPa

Output voltage

10 ?

Natural frequency in fixed state

18 kHz | 22 kHz2 | 32 kHz | 55 kHz

Acceleration sensitivity

< 0.001 bar/g

Ambient temperature

-50 ... +85 °?

Temperature of the medium

-50 ... +300°C (without cooling) +1000°C (with cooling)

Power supply voltage

+(9 ... 15) ?

Consumption current

< 30 mA

Housing material

stainless steel

Weight (without cable)

300 ?

Type of product according to PP RF 616

Instruments and other instruments for measurement, control and testing

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
