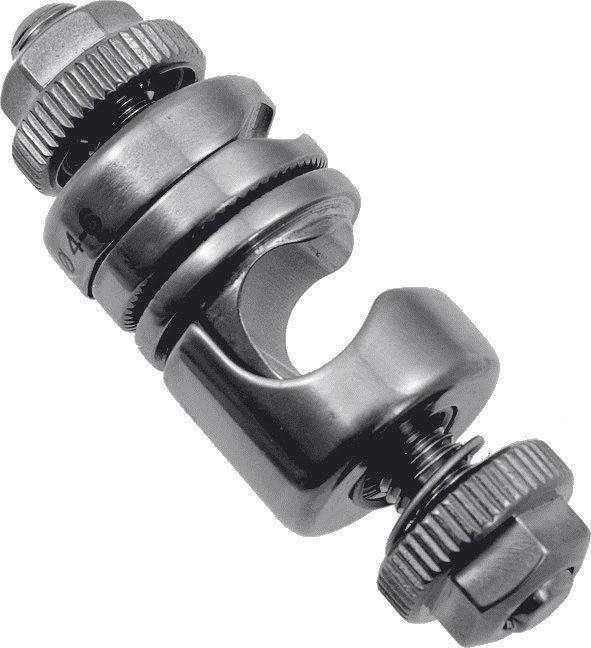

Standard Clamp "11" for Ø5mm and Ø6mm Rods - Secure and Adjustable

For Ø5mm and Ø6mm rods. Spring-loaded, self-retaining. The standard rod holder shall be non-disassembling and provide for clamping of Schanz rods and adjustment of their position in the circumference in the range of 360?

with a "mouse tooth" type clamp. The fixation of the support tube to the rod holder shall be 3-point open type, and the Schanz rod in the clamp shall be 4-point. The overall adjustment of the mutual location of the system "support tube - standard rod holder - Schanz rod" should be made in 3 planes.

The clamping units of the support tube and Schanz rods must be spring loaded, the locking nuts must have a stroke limiter and must not fall out. The standard rod holder shall have grey colour coding, marking of the diameter of the rods to be clamped, individual marking and packaging. Laser marking of the diameter of the components to be clamped.
