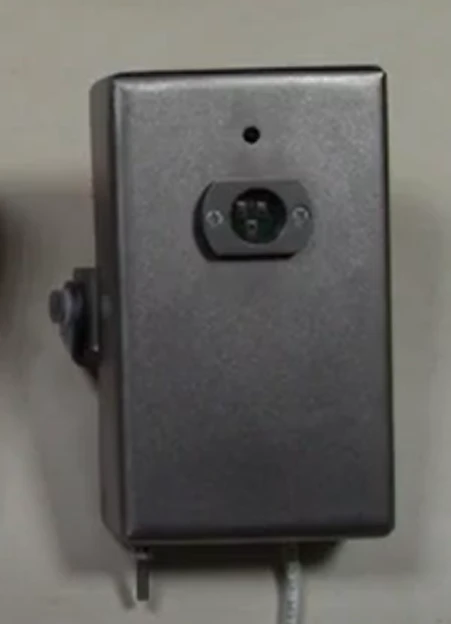

Spectron-804-Exm-N fire flame detector from Russia

Fire Alarm Detectors

Manufacturer: SPEKTRON LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Spectron-804-Exm Flame Detector with Modbus Communication Spectron-804-Exm-N-HART fire flame detector Spectron-804-Exi-H-Modbus fire flame detector

Description

4-IR fire flame detector Spectron series 804-Ehm. Immunity category - 1 (Maximum) super immunity to heavy optical interference. Recognise manual arc and argon welding as false interference!

They are used in open areas and in closed rooms with severe operating conditions. Temperature range from - 55 to + 75°C. Viewing angle 90°.

Flame detection range - 25 m at TP5 and TP6. 4 operating modes with different sensitivity and detection range. There are functions of self-testing and transmission of fault signal, tested with a test light.

Upit - 12...32V. IP66/IP68. Explosion protection marking.

PB Ex mb I Mb X/1Ex mb IIC T6 Gb X/Ex mb IIIC T85ºC Db X. Enclosure - stainless steel. Overall dimensions (HxWxG) 135x109x104 mm.

Specifications

Weight

800 year

Overall dimensions

135x109x104 mm

Viewing angle

Flat grinder, Specialised grinder

Spectral sensitivity

4-IC.

Recovery time

Degree of protection of the shell, IP

Operating temperature range

75 °C

Operating temperature

(55);+75 °C

Designation

FIRE FLAME DETECTOR MULTIBAND 4-IK IP-330-3-1

Assignment

Recommended for fire alarm systems and fire extinguishing systems

Explosion protection marking

PB Ex mb I Mb X/ 1Ex mb IIC T6 Gb X/ Ex mb IIIC T85ºC Db X

Housing material

stainless steel

Power supply voltage

12...32 V

Sensitivity levels

Grade 1

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
