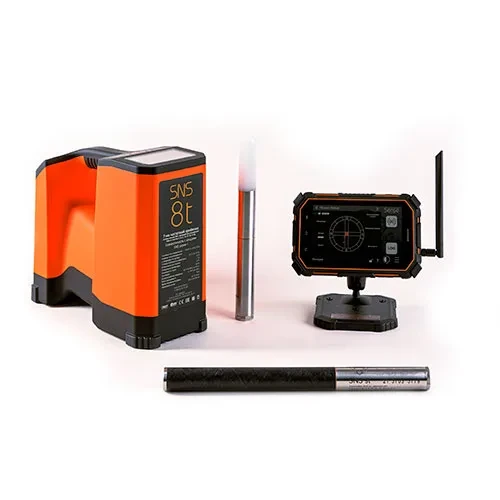

SNS 8t NV Location System for Accurate Positioning During Directional Drilling

The system is designed for permanent determination of the drill head position underground during horizontal directional drilling by the parameters of the electromagnetic field generated by the probe located near the drill head. Technical characteristics: Working frequencies 2, 8,12, 18, 24, 30, 41 kHz; 3 modes of probe power; maximum depth with wireless probe - up to 40 metres in high power mode; telemetry radius 500 m, with one repeater - 1000 m; accuracy of inclination angle determination 0,1%; determination of drill head position "by clock face"; trace search function
