Single-Mode Polarization Maintaining Fiber Optic Cable for Optical Applications

Special Fibre Optic Cables

Manufacturer: CNII Electropribor OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

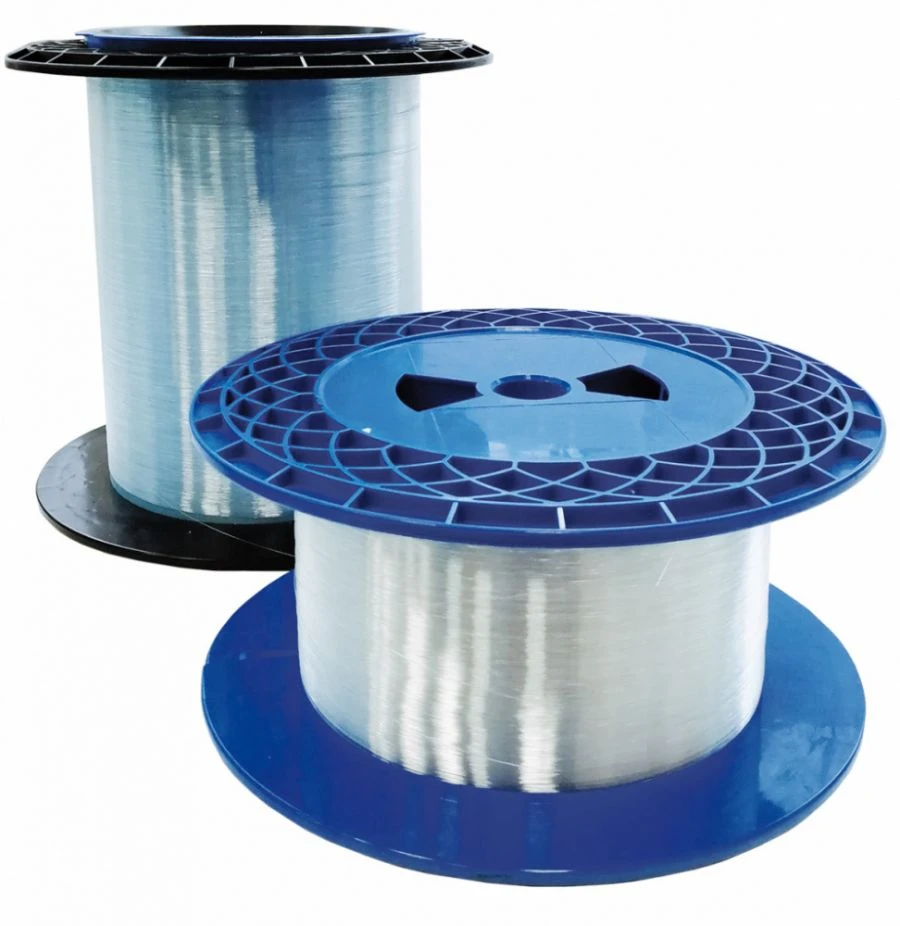

Designed for use in fibre optic sensors, compensation interferometers and fibre optic lines requiring the preservation of polarisation of optical radiation. The operating wavelength is 1550 nm. Low h-parameter (h-parameter not more than 2?10-5 m-1) Coating type: double-layer acrylate Operating temperature range: -60ºC to + 85ºC Fibre is supplied in spools from 0.5 km.

All fibres are rewound at tension? 7 N (0.69 GPa).*Pruf tests at higher tension are possible.

Specifications

Operating wavelength

1.55

Optical losses (radiation attenuation coefficient), not more than

Cutoff wavelength, not more

1.15...1.45

Calculated numerical aperture

0.12...0.14

Diameter in protective polymer coating

240...260

Quartz shell diameter

123...127

Bending radius (permissible), not less than

20 mm

Operating temperature range

-50...55 °C

Temperature limit range (during storage)

-65...75 °C

Average time to failure, based on 1 km of fiber, not less than

4000000

Shelf life of the light guide as a part of the product, not less than

25 year

Construction length

1000...4000 m

Length of polarisation runouts, not more than

4 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
