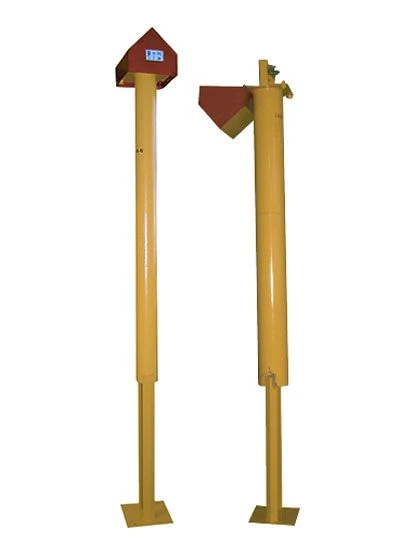

SIKNAL Measurement Control Point Stand SKIP for Monitoring Underground Pipelines and Electrochemical Protection

Designed to indicate the route of underground pipelines and control parameters of electrochemical protection according to GOST R 51164-98 and GOST 9.602-2005, as well as to connect the constituent parts of EHS systems at the place of operation according to the project documentation. Structurally, the rack is a stand (a section of steel pipe with a base plate and a panel welded to it), on which terminal panels with measuring and power terminals are installed. The terminal plates are closed with a hinged cover.

The cover is equipped with a lock and has two inclined planes for marking identification information. The cover can be hinged by 180°. Two-way access for maintenance.

A placard cover is available. The design of the measuring and power terminals ensures that wires and cables can be connected to them without special termination.
