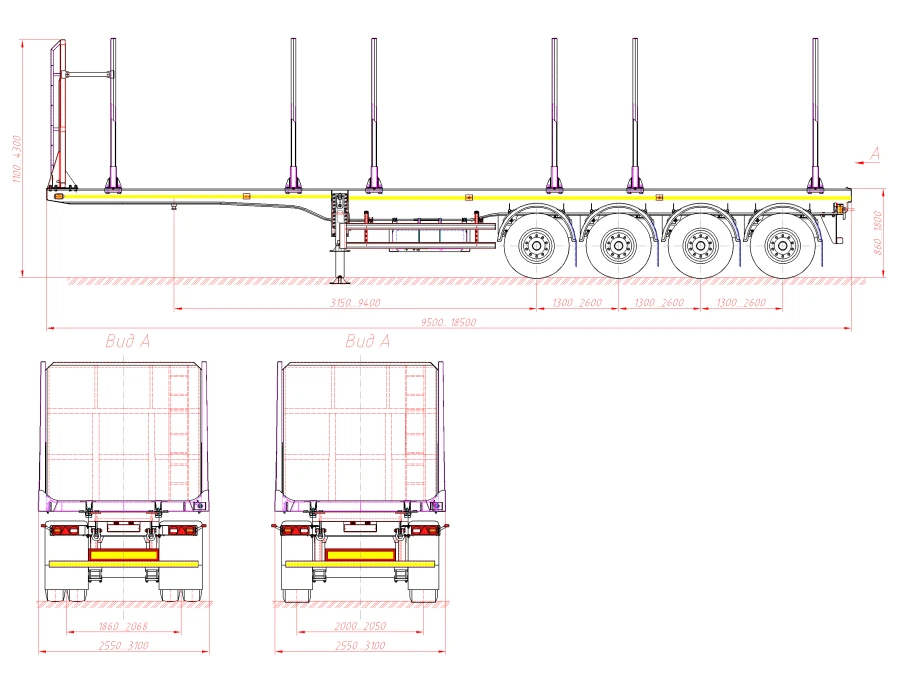

Semi-Trailer 98132A with Load Space Frame and Platform

Available for Import

Semi-Trailer 98132A - Ideal for Long Cargo Transport and Container Handling

Heavy Duty Trailers

Manufacturer: NOVOSIBARZ OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Semitrailer 98132B (loading space design - load-bearing frame, cones, front shield) Semitrailer 98132A (loading space design - load-bearing frame, cones, front shield) Semitrailer 98132B (loading space design - supporting frame, platform, cones, front shield)

Description

The trucks are designed for carriage of assortment and other long cargoes, with container locks installed - containers of various types, including containers and tank containers, detachable tanks, detachable tank bodies designed for carriage of dangerous goods. Technically permissible maximum weight of the vehicle is 42-52 tonnes. Loading space - load-bearing frame with all-metal open platform, with a front protective shield, with or without length-sliding chocks / with or without width-sliding chocks.

The kingpin diameter is 50.8 mm or 88.9 mm. Axles 9 tonnes manufactured by Plant Ltd. or Axle unit 9 tonnes.

BPV-Ost Ltd. Tyres 385/55 R22,5; 385/65 R22,5 manufactured by JSC "Kordiant"/OJSC "Nizhnekamsk Tyre Plant CMK". Wheel discs manufactured by OOO "AccuRide Wheels Russia" or PJSC "ChKPZ".

Receiver manufactured by OOO TD "AUTOTECHNOLOGIA". Lighting equipment manufactured by OOO "Atlanta". Floor level crane manufactured by VBK Vostok Ltd.

Specifications

Type of semi-trailer

Onboard

Gross weight

52 t

Base machine type

truck

Number of axles

4 pcs

Climatic version

UHL

Type of semi-trailer

Sorting truck; container truck

Front track

1860...2068 mm

Rear track

1860...2068 mm

Axle load capacity

8...9 t

Maximum length

18500 mm

Width

2550...3300 mm

Maximum height

4000 mm

Technically permissible maximum load on the coupling ball bar

9807...15691 kg

Technically permissible maximum mass of the vehicle

42000...52000 kg

Vehicle kerb weight

6000...16000 kg

Ergonomic parameters

Paint coatings used for the exterior surfaces of semi-trailers, allow the possibility of painting or repainting them with natural drying paints; the force required to lift the spare wheel does not exceed 500 N (50 kgf). When using the mechanism

Warranty period

B1/B8 2100/900 MHz

Reliability parameters

Average service life before the first major overhaul under the first category of operating conditions in compliance with all operating and maintenance rules specified in the operating manual - not less than 100,000 km; MTBF under the first category of cond

Scope of application

Designed for transportation of construction and road equipment, as well as other indivisible cargoes weighing 20 tons and more, containers of various types, including containers and tank containers, detachable tanks, detachable tank bodies, designed for th

Base

3150...9400+1300...2600+1300...2600+1300...2600

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
