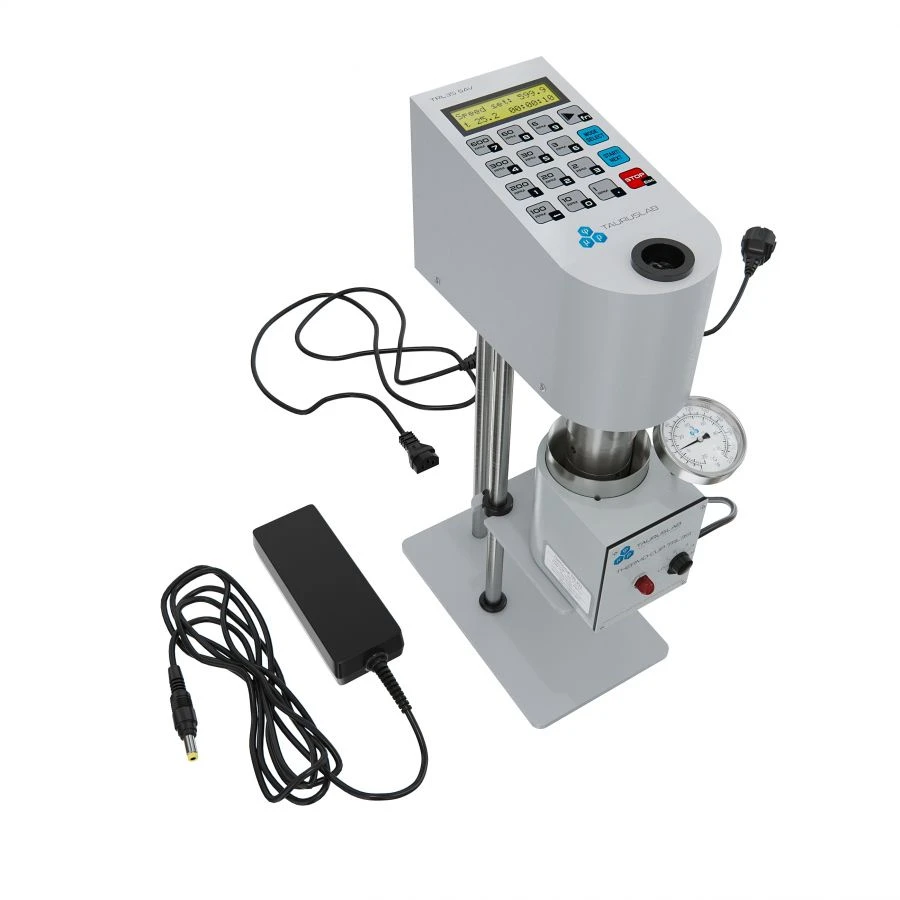

Semi-Automatic Viscometer TRL35 SAV for Accurate Viscosity Measurement

Fluid Measurement Devices

Manufacturer: TAURUSLAB LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The TRL35 SAV Viscometer (Semi-Automatic Viscometer), part of the 35 instrument series, is a semi-automatic viscometer measuring viscosity in the range of 0.17 - 1021 s-1 shear rate and in the range of 5.11-1533 dyne/cm2 shear stress. Its modern design, sophisticated ergonomics, rugged construction and four API test algorithms make the TRL35 SAV a versatile, portable device for use in field and stationary laboratories.The instrument allows automatic testing and parameter recording with operator assistance. The TRL35 SAV allows any rotation speed to be set.

The temperature is monitored by a temperature sensor forcibly placed in the sample beaker and displayed on the LCD.

Specifications

Rated supply voltage

110...230 V

Number in the state register of measuring instruments

88324-23

Temperature range

Standard to 93 0C °C

Fixed speeds

Testing programmes

4 preset API programs

Working pressure

Atmospheric

Viscosity range

0.05 - 10,000 cPuaz

Shear velocity range

0,17 - 1021 sec-1

Shear voltage range

5,11 - 1533 dyne/cm2

Resolution

1 din/cm2

Accuracy

±0.5% torque range %

Dimensions

42-13-20 (w-to-d) cm

Weight

5 kg

Completeness

Viscometer TRL35 SAV; Sample cup, 304 stainless steel; Temperature sensor, 304 stainless steel; Bob B1, 304 stainless steel, all-metal; Rotor R1, 304 stainless steel; Mud cover, 304 stainless steel; Torsion spring F1 (with

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
