Available for Import

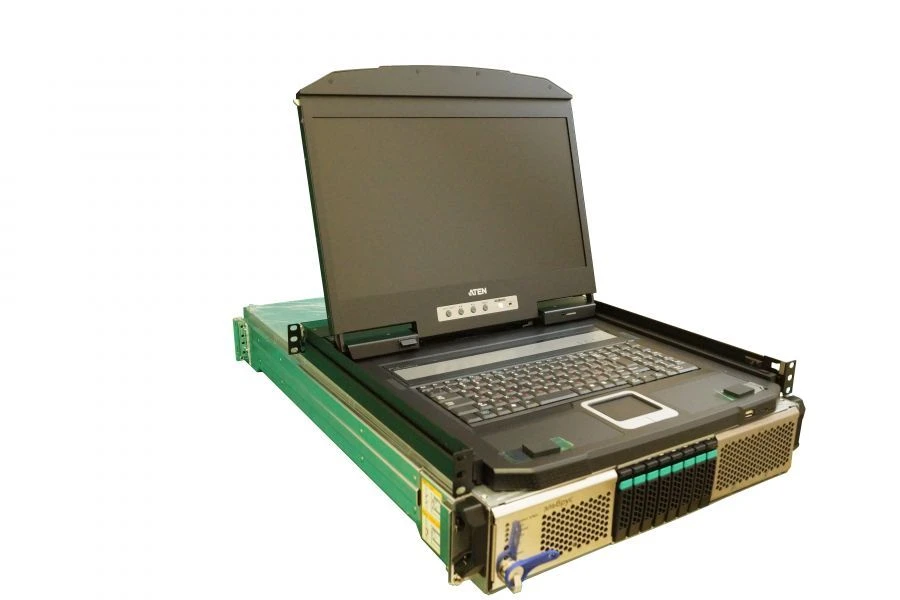

Secure T2 Server for Automated Systems - Protect Confidential Information

Data Processing Systems

Manufacturer: INEUM im. I.S. Bruka PJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The server is intended for construction of automated systems in a protected version, processing information containing information constituting state secrets with the degree of secrecy not higher than "secret" and should be operated in dedicated premises not higher than the third category, provided that the requirements of the prescription for operation. Security of information processing by the server is provided in the presence of valid certificates of conformity of the Federal Security Service of Russia for the OS "Astra Linux Special Edition" RUSB.10015-16 version 2 and hardware-software module of trusted loading APMDZ-I/E. .

Specifications

Means of communication

Internet

RAM size

128

Number of processor cores

8 pcs

Base frequency of the processor

1.3

Case Form Factor

Operating system

"Astra Linux Special Edition" RUSB.10015-16 version 2 ("Leningrad")

Monitor availability

* No. To be determined by contract

Keyboard availability

External connectors

SATA - 4 pcs.

Architecture

Elbrus

Rear I/O panel

SATA- 5 pcs, USB 2.0 - 4 pcs, GbEthernet - 4 pcs, RS-232 -1 pc.VGA - 1 pc.

Available expansion slots

SATA- 5 pcs, USB 2.0 - 4 pcs, GbEthernet - 4 pcs, RS-232 -1 pc.VGA - 1 pc.

Power subsystem

The server is powered from a single-phase AC electrical network with voltage (220 +- 22) V and frequency (50 +- 1) Hz.

Data storage subsystem

SSD - 3 pcs. (type, volume, quantity to be determined by the contract)

Cooling subsystem

Air forced, consisting of three case fans and two heatsinks SNK-P0048P by Supermicro, mounted on processors.

Front panel and indication

Indication: error, storage activity, power on, rack identification

Number of integrated circuits

2 pcs

Built-in certified information security features

OS "Astra Linux Special Edition" RUSB.10015-16 version 2 ("Leningrad"), APMDZ-I/E KBDZh.468243.173, PNS TVGI. 00727-28, housing tamper switch

Operating temperature range

5...40 °C

Internal power supply

800 W

Availability of built-in audio speakers

Monitor matrix type

Monitor diagonal

18.5

Power consumption (excluding KVM console)

252 W

I/O channels

GbEthernet (RJ45) - 4 pcs; USB - 4 pcs; VGA - 1 pc; RS-232 - 1 pc; SATA 3.0 - 5 pcs.

Weight

20.8 kg

External memory capacity

Not less than 3 TB (defined by contract)

Server composition

- E8C/EATX module LYAUI.469555.092 (as a part of the initial start progarmmea (INP) TVGI.00727-28) - 1 pc; - case PRVL.301122.221 of LLC "Promobit" - 1 pc; - SSD drive (type, volume and number of drives are determined by the contract) - 3 pcs; - APMDZ I/E

I/O devices

KVM console CL3100NX by Aten (delivery is determined by the contract), connected via USB 2.0 and VGA interfaces with the following characteristics: 1U form factor, 18.5'' monitor screen diagonal, resolution 1920×1080 px at 60 Hz, built-in keyboard and touc

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
