Available for Import

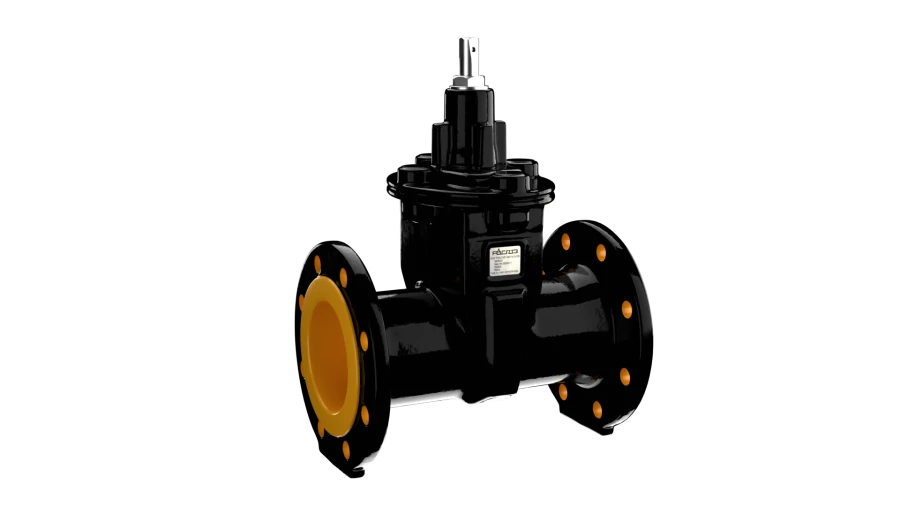

Rubberised wedge gate valve for gas supply 31vch26p,

Gate Valves

Manufacturer: RSG GROUP LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Rubber-Coated Wedge Valve for Gas Supply PN 1.6 MPa - 31вч26р Rubberised wedge gate valve for gas supply 31vch26p, with flanged connection, long, nominal pressure PN 1,6 MPa Rubberised wedge gate valve for gas supply 31vch26p, with flanged connection, long, nominal pressure PN 1,6 MPa Rubberised wedge gate valve for gas supply 31vch26p, with flanged connection, long, nominal pressure PN 1,6 MPa Rubberised wedge gate valve for gas supply 31vch26p, with flanged connection, long, nominal pressure PN 1,6 MPa

Rubberised wedge gate valve for gas supply 31vch26p, with flanged connection, long, nominal pressure PN 1,6 MPa Rubberised wedge gate valve for gas supply 31vch26p, with flanged connection, long, nominal pressure PN 1,6 MPa Rubberised wedge gate valve for gas supply 31vch26p, with flanged connection, long, nominal pressure PN 1,6 MPa Rubberised wedge gate valve for gas supply 31vch26p, with flanged connection, long, nominal pressure PN 1,6 MPa Rubberised wedge gate valve for gas supply 31vch26p, with flanged connection, long, nominal pressure PN 1,6 MPa Rubberised wedge gate valve for gas supply 31vch26p, with flanged connection, long, nominal pressure PN 1,6 MPa

Description

Gate valve with rubberised wedge ROSGAZ (ZOK "ROSGAZ"), designed to shut off the flow of natural gas transported through gas distribution networks and gas consumption.Body -VChSHG (VCh-40). Cover: HSSG (HCH-40).Wedge: HSSG, vulcanised with butadiene nitrile rubber.Cover screws: stainless steel.Polyethylene spigots: PE100 SDR11.Spindle: stainless steel.Spindle nut: brass.Spindle sealing design - 5 o-rings form a labyrinth sealing system of the spindle. Sealing of movable and fixed connections of the gate valve - O-rings, profile gaskets Connection to the pipeline - polyethylene spigots Sealing class "A".

Specifications

Spindle type

Non-retractable

Material of construction of the locking mechanism

Cast iron

Gate valve type

Wedge

Hull molding type

molded

Type of sealing of moving parts against the external environment

Glands

Type of connection to the pipeline

Flanged

Type of seal in the gate

Elastic seal

Nominal pressure (PN), MPa (kgf/cm)

1,6 (16,0)

Nominal diameter (DN)

350 mm

Type of product according to PP RF 616

Shut-off valves for process control (gate valves, cocks, stop valves, disk gates and other fittings)

Construction length

550 mm

Type of execution

Standard (under flywheel)

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
