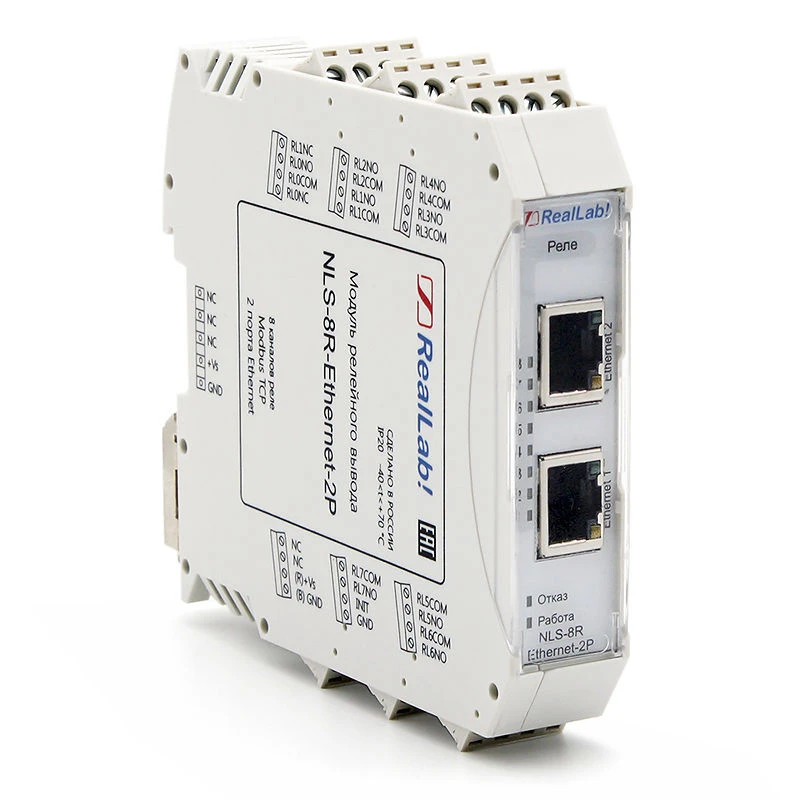

NLS-8R Ethernet Relay Output Module for Signal Output and Control

Purpose: output of signals from relaysConnection: 8 relays 2 A =30 V or 0,25 A ~220 V per relay contact.To each terminal of the module 2 relay contacts are connected (contacts are connected in parallel), i.e. the actual current of the module terminal is approximately equal to 4 A at 30 V or 0,5 A at 220 V.6 relays with normally open contacts and 2 - with switching contactsGalvanic insulation: Ethernet (1500 V)Temperature: -40 to +70 CInterface connection: 2 Ethernet ports, support for Ethernet Worasss technologyProtocols: Modbus TCP, DHCPEthernet speeds: 10BASE-T/100BASE-TXConfiguration: WEB-interface, Modbus TCPPower supply: 10 to 30VPower consumption: not more than 1.6 / 2.6W (with relays off / on)Design: tray design, bus connector for power supplyMounting: on din-railCode OKPD2: 26.51.43.117Dimensions (H x W x D): 109x22,5x113 mmWarranty: 18 months.
