Available for Import

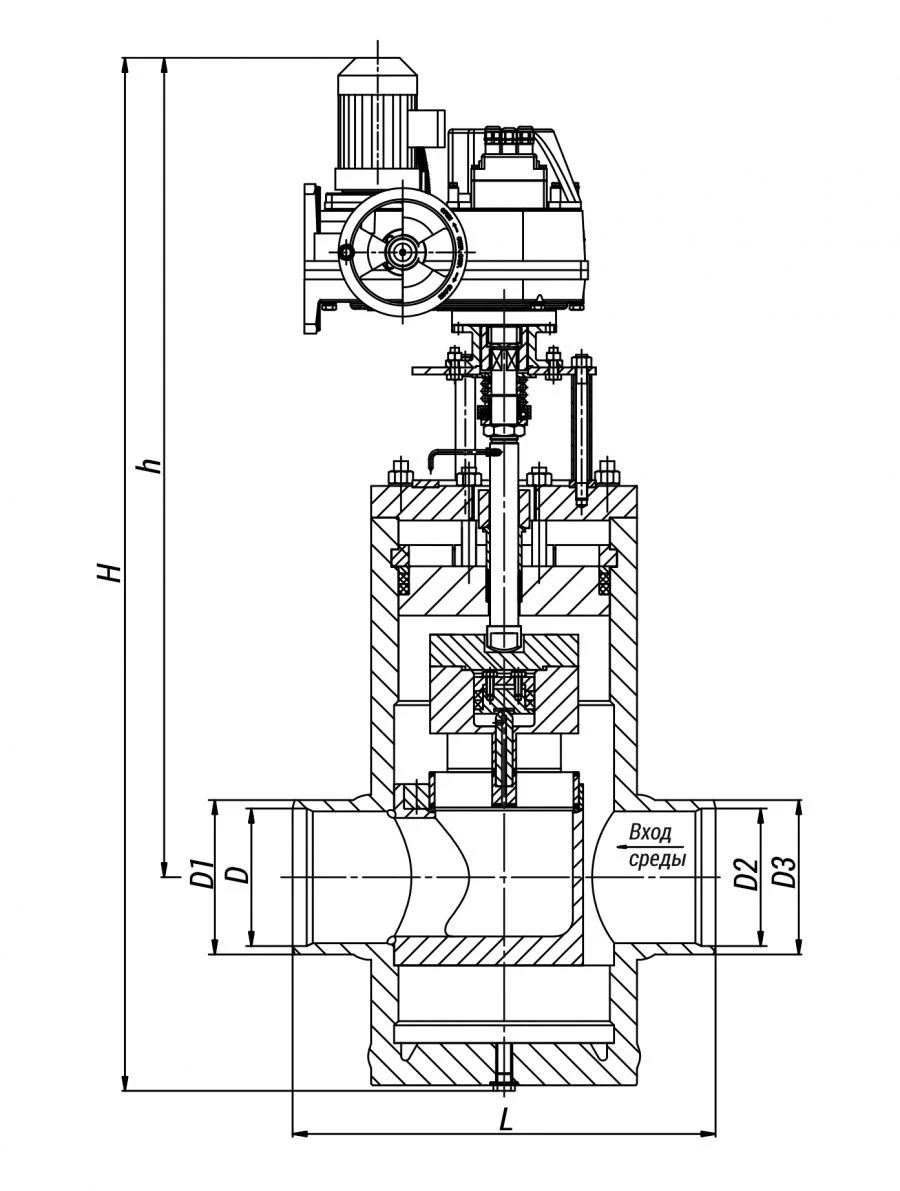

Regulating Valve 23c-200-1-E for Efficient Flow and Pressure Control

Regulating Equipment

Manufacturer: BKZ LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

23s-100-2-E Control valve 23c-100-1-E Control valve 23s-150-1-Å Control valve 10s-5-4-4-1E Control valve 23s-150-2-? Control valve

23c-80-2-E Control valve 23c-80-1-E Control valve 23c-200-2-E Control valve

Description

Regulating unloaded, disc valves are designed to regulate the flow rate or pressure of the working medium. The flow of medium through the valve is regulated by changing the cross-sectional area, which is achieved by turning the spool relative to the seat. Connection to pipeline: under welding.

Climatic design: ?, ???, ??,? according to GOST 15150-69. Placement category: 3, 4, 5 according to GOST 15150-69.

Installation position on the pipeline: horizontal, vertical. Direction of working medium supply: to the seat. According to the arrow on the body.

Seal tightness: class IV GOST 9544-2015.

Specifications

Material

Steel 20

Operating medium

water-vapor

Weight

550 kg

Diameter

200 mm

Pressure

10 MPa

Control method

????????????? ????-1000/25-025?-97? mm
