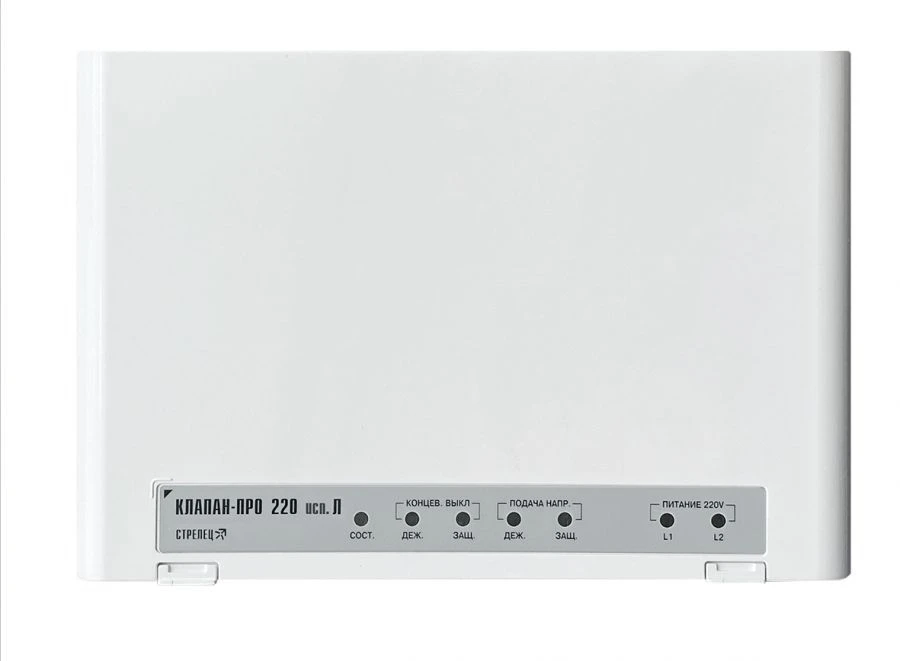

Radio-controlled Actuator Block Valve-PRO 220 L for Fire Automation Control

Block executive radio channel Klapan-PRO 220 esp. L (hereinafter - the Device) is designed to control various fire automation valves and other executive devices as part of the intra-service system "Strelets-Integral". The device has a relay output.

Relay output parameters: - switching voltage - 250 V AC; - maximum switching current - 3 ?. Backup power supply of the device is a lithium battery with nominal operating voltage of 3.0 V and capacity of 0.2 A?h (type - CR2032). The batteries are supplied already installed in the device.

To switch on the device, remove the insulating tape. The device maintains operability in the following conditions: - ambient temperature - from minus 30 to plus 55 ° C; - relative humidity - up to 93 % at 40 ° C.
