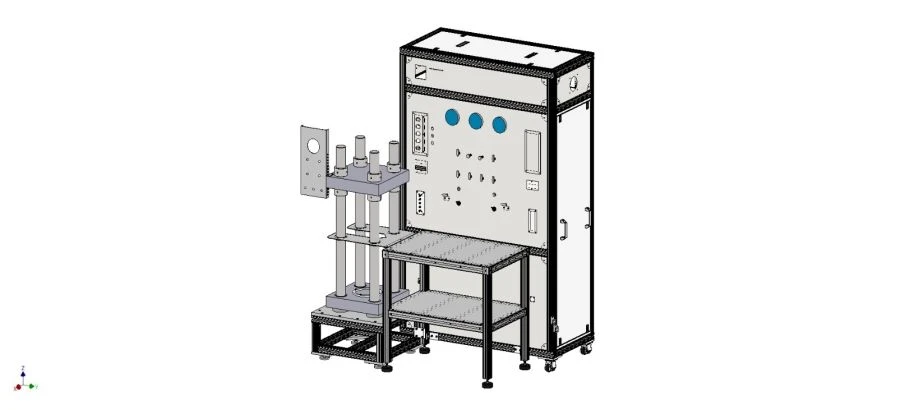

Propant Pack Conductivity Measurement System - ITEK for Long-term Testing

Analytical Instruments

Manufacturer: INTERTEK LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Installation for measuring the conductivity of proppant pack - ITEK is designed for testing and developed to create standard methods and conditions used in assessing the long-term conductivity of various fluids, for hydraulic fracturing in laboratory conditions. This method allows the user to compare conductivity characteristics under specific described test conditions. The test results can assist the user in comparing propping filler materials for use in fracturing operations. The facility allows the determination of API short-term conductivity and ISO 13503-5 long-term conductivity between core plates.

Specifications

Maximum axial force per cell

138 MPa

Maximum pressure of KCl solution in the system

5.2 MPa

Accuracy of strain measurement

0.025 mm

Accuracy of differential pressure measurement

0.1 %

Material of parts in contact with KCl solution

stainless steel

Number of proppant test cells

4 pcs

Heating temperature of the plant elements

0...150 °C

Accuracy of fluid flow rate maintenance, error

0.5 %
