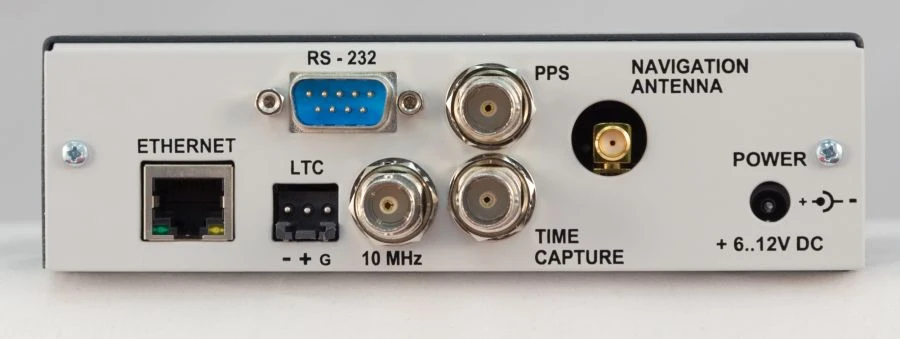

Precision Time Server PNTP-5021 for Accurate Time Synchronization

The precision time server is a hardware of clock network synchronisation and unified precision time. Synchronisation of the server is carried out from signals of satellite radio navigation systems GPS/GLONASS. The device provides: performance of NTP server functions (Stratum 1) in IP networks; performance of MASTER functions via PTP protocol (including the function of clock synchronisation signals transmission); formation of frequency output 10 MHz (TTL), 50 Ohm, BNC; formation of pulse output 1PPS (TTL), 50 Ohm, BNC; formation of LTC according to EBU/SMPTE309M standard; output of navigation information via RS232 according to NMEA0183 protocol; autonomous operation from internal OCXO generator. Short-term instability (Allan deviation) in 1 sec - 1-10-11. Measurement of time interval between internal 1PPS and external TIME CAPTURE signals.
