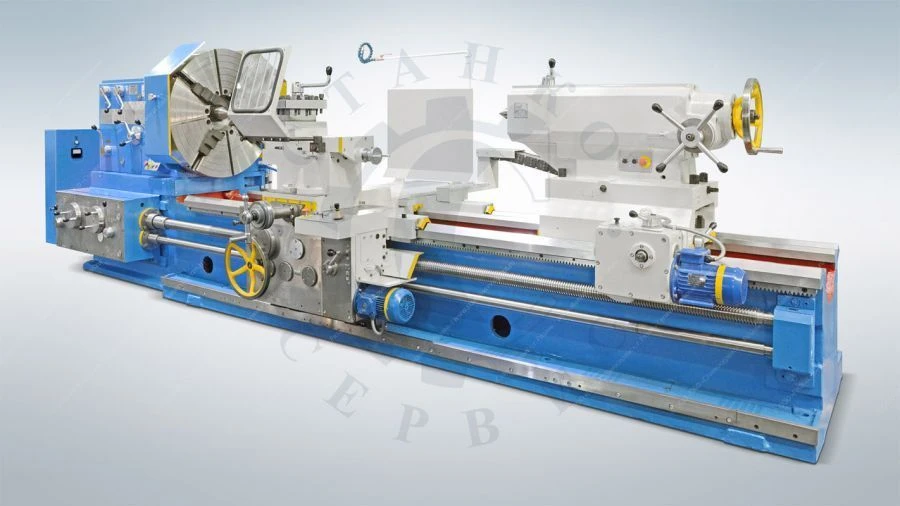

Precision Lathe Machine RT817G-3 for Turning and Threading

Available for Import

Precision Lathe Machine RT817G-3 for All Turning and Threading Applications

Manual Metal Lathes

Manufacturer:STANKOSERVIS LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Rotary screw-cutting machine tool RT817-3

Description

The machine is designed for all turning operations, including taper turning and thread cutting - metric, modular, inch

Specifications

Type of product according to PP RF 616

Turning and screw-cutting machines (universal, with CNC, CNC)

Height

2100 mm

Width

2200 mm

Length

6140 mm

Main motion drive power

30 kW

Longest workpiece length

3000 mm

Spindle speed limits

5...500

Largest diameter of the workpiece to be mounted above the bed

1370 mm

Roughness of the cylindrical surface of the sample product after its finish machining

Ra 2.5 µm

Accuracy class of machine tools according to GOST 8-82

Machine weight

13.3 t

Height of the tool to be mounted

SBVVBG mm

Highest cutting force Pz

41000

Highest torque on the spindle

9.5 kNm

Speed of rapid transverse movements of the slide

1000 mm/min

Speed of rapid longitudinal movements of the caliper

3000 mm/min

Step limits for machinable modular threads

0.5-24 module

Step limits for machinable inch threads

24-1/4 threads per 1 inch

Step limits for machinable metric threads

1...96 mm

Maximum lateral movement of the slide

700 mm

Maximum longitudinal movement of the slide

2700 mm

Diameter of the cylindrical bore in the spindle

128 mm

Largest diameter of the workpiece to be machined above the bed

1140 mm

Largest diameter of the workpiece to be mounted and machined above the slide

1100 mm

Design feature

GAP

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
