Perimeter Security System "WOLF" for Accurate Detection of Ground Vibrations

Security System Accessories

Manufacturer: BG-OPTICS LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

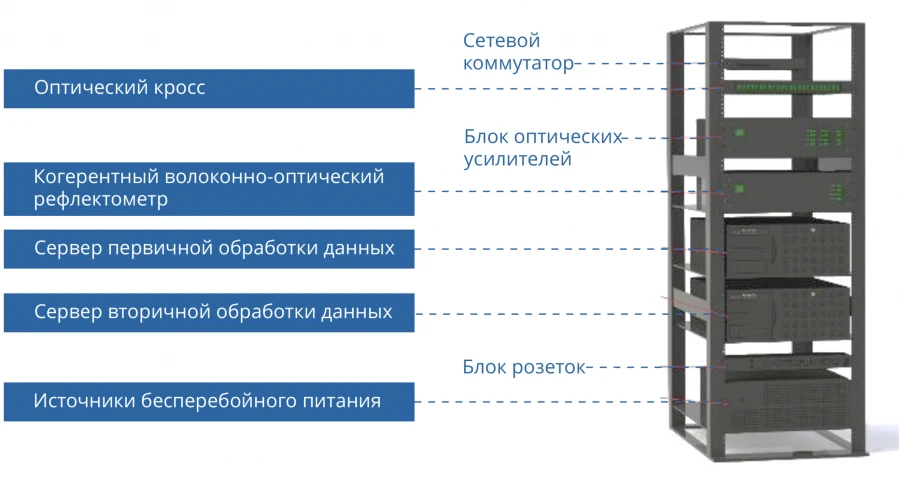

The fibre optic perimeter protection system "VOLK" allows to detect any kind of activity, causing ground vibrations in the path of the sensor cable, localise the impact with an accuracy of up to 5 metres and classify the type of intruder on perimeters up to 140 km long. Detects and recognises the following types of impacts: movement of a pedestrian crossing the security boundary (including digging, climbing, dismounting, etc.); movement of a vehicle crossing the security boundary; work with a channelling tool; movement of light wheeled vehicles; movement of heavy wheeled equipment; operation of earth-moving machinery; movement of caterpillar equipment. Perimeter protection system "VOLK" consists of a stationary part (optical unit, secondary processing server with special software, UPS), linear part (fibre-optic cable with single-mode optical fibre), operator's workstation.

Specifications

Time of delivery of alarm notifications

Number of automated workplaces (AWPs) in the system

3 pcs

Possibility to customize the service area of the APM

Got it

Automatic redundancy of all information received on the workstation

Got it

Logging user actions

Got it

Maximum number of alarm loops

4 pcs

Maximum number of connected IP, AHD, TVI, CVI cameras

300 pcs

System ready time after switching on

Range of detection of intruder or object movement along the zone

1 m

Detection range of earth-moving machinery operation

20 m

Range of detection of caterpillar vehicles movement

SBVVBG m

Range of detectable speeds of intruder movement

0.8 to 16.7

Service life

10 year

Range of product linear part lengths for one boundary (one channel)

1,5 - 70,0

Linear part length range for two boundaries (two way)

3,0 - 140,0

Resolution of disturbance location detection

5 m

Average MTBF of the linear part in the absence of mechanical damage

100000

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
