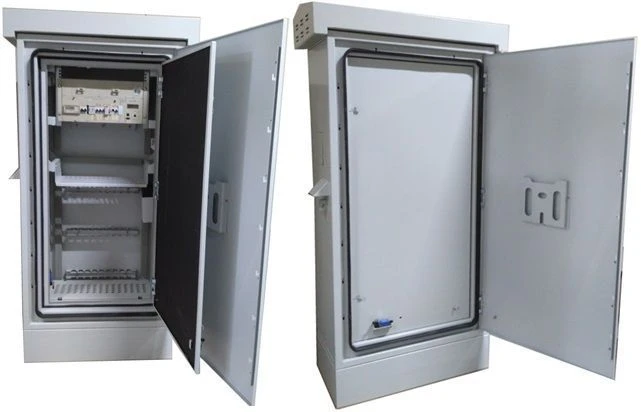

Outdoor Telecommunications Cabinet STU-P-6U 850x1900x450 IP55

Available for Import

Outdoor Telecommunications Cabinet STU-P-6U 850x1900x450 for Equipment Protection

Telecom Equipment Components

Manufacturer: STR-TELECOM LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

???-?-6U-850?1900?450-??-Rd. Outdoor telecoms cabinet for telecoms equipment installation on the foundation. Enclosure IP 55 with mounting profiles 19" height 6U and shelves.

The cabinet is designed to install the following equipment: VRU-19-3U = 1 piece, thermostat NO, NC = 2 pcs. heater 220 V, 400 W = 1 piece. EFU = 1 k-t.

sensors = 1k-t. Overall dimensions ?????? mm = 850?1900?450.

Plinth height 200 mm. IP 55. Telecommunication outdoor cabinet in vandal-proof version (hereinafter referred to as the cabinet) is designed for placement and autonomous functioning of electrical equipment and year-round operation outdoors in unprotected areas.

The base of the cabinet is made of high-strength steel 3 mm, weatherproof coating. The cabinet design is made for installation on the base (foundation block), through which the cable entry into the telephone sewer or into the ground is provided.

Specifications

Depth

450 mm

Protection class

IP54

Weight

190 kg

Length

450 mm

Height

1900 mm

Width

850 mm

Type of accommodation

outdoor for surface and floor mounting

Type of construction

unassembled

Usable depth

450 mm

First characteristic digit of the degree of protection designation

Second characteristic digit of the degree of protection designation

Type of floor support

Armoured glass

Availability of fasteners to the support (pole)

Type of coloring

Powder

RAL color

7035

Material

Cold-rolled steel

Material thickness

1.5 mm

Upper limit of operating temperature

60 °C

Insulation thickness

10 mm

19" profile for mounting equipment

Armoured glass

Usable height, U

Heater

Armoured glass

Type of accommodation

outdoor

Height, U

Operating temperature range

-40...60 °C

Device type

Outdoor telecommunication cabinet

Height/story (unit)

Form factor (rack-mounted, freestanding)

freestanding

Resistance to mechanical external influencing factors (EIF)

according to gost 17516.1-90 (IEC 721-3-3-87) - m42

Resistance to mechanical (BBF) effects

according to iec 62262 class ik08

Cooling capacity

700 W

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
