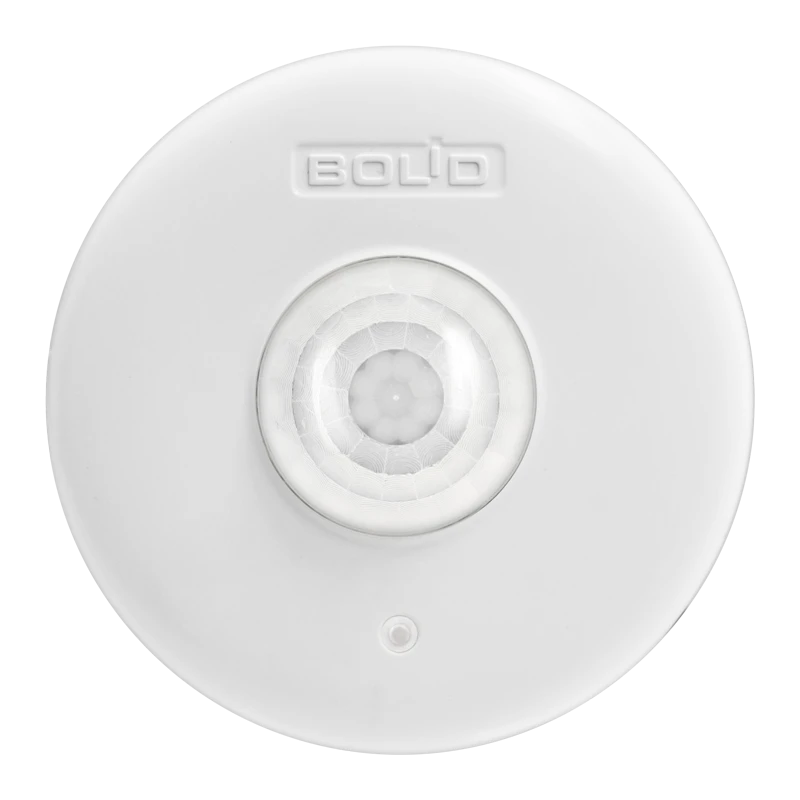

Optical-Electronic Passive Infrared Security Detector for Intrusion Detection
Manufacturer:
BOLID CJSC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Designed to detect intrusion (attempted intrusion) into the protected space of a closed room by analysing infrared radiation. Designed to work with controllers two-wire communication line as part of an integrated security system "Orion". Power supply and information exchange detector is carried out via two-wire communication line.
Specifications
Supply voltage (from DPLS)
8 - 10 ?
Current consumption in Alarm mode
max. 1.4 mA
Average current consumption in standby mode
Not more than 0.9 mA
Diameter of detection area (at height 2.5m / 3.6m)
12 / 12 ?
Detection speed range
0,3...3 metres/second
Resistance to ambient light
not less than 6500 lx
Protection degree of the shell according to GOST 14254-2015
IP41
Operating temperature range
-30 to +40 °C
Overall dimensions of the device (H x W)
38x90 mm
Instrument weight
0.1 kg
Average lifetime of the device
8 year
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
