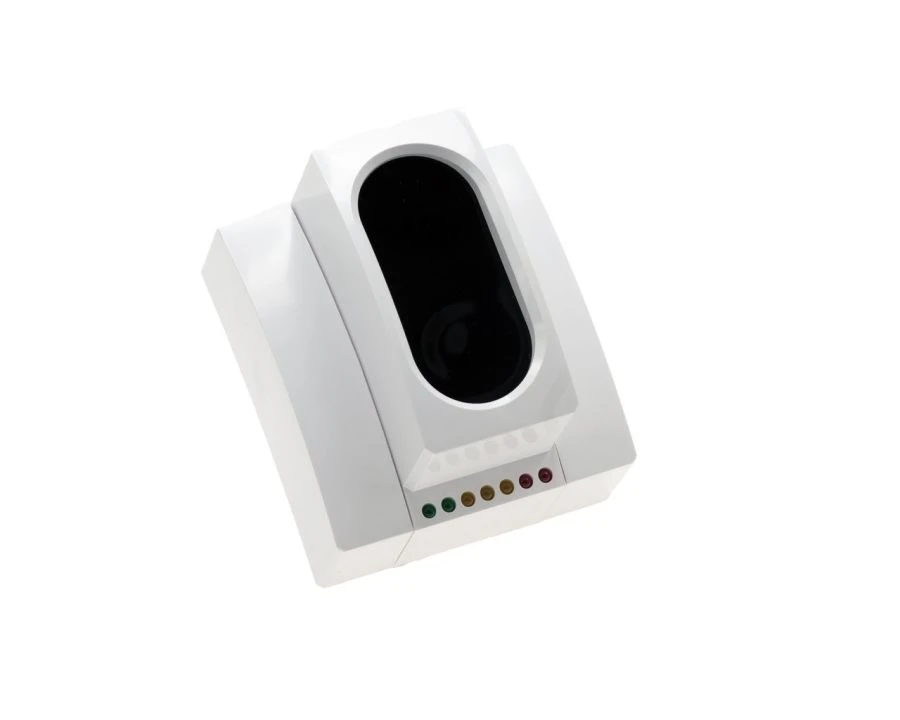

Optical-Electronic Linear Smoke Detector IP212-52C for Large Area Fire Protection

Fire Alarm Detectors

Manufacturer: IVS LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Linear smoke detector for the protection of premises of large area or length. Distinctive features of this modification: two-position version (receiver + transmitter); working distance from 8 to 140 metres; precise screw adjustment mechanism. Receiver and transmitter have the same design and are made in the form of a rectangular plastic housing with a board with radio elements and optical system installed inside it. On the base of the housing there is an electric screen (chrome-nickel plate), providing the necessary protection from electromagnetic interference.Linear fire detector has a collecting (focusing) lens slightly recessed in the housing, which provides protection of its outer surface from settling dust. On the sides of the housing (receiver and transmitter) under the mounting covers are terminal blocks for external connections, and at the receiver, in addition, the software switch tactics detector and the connection connector tester IPDL-52.

Specifications

Range of possible distances between receiver and transmitter

8...140 m

Maximum possible width of the space to be protected by one detector

9 m

Maximum possible room area protected by one detector

1260

Detector power supply voltage (receiver and transmitter)

10...30 V

Current consumed by the detector in the "Normal" mode (when the transmitter is powered from the receiver via communication line)

0.0025 A

Current consumed by the receiver in the "Normal" mode (when the transmitter is powered from a separate source), not more than

0.0025 A

Current consumed by the transmitter when powered from a separate source (in any mode of operation), not more

0.0012 A

Current consumed by the receiver in the mode of forming the output signal "Attention", not more than

0.011 A

Current consumed by the receiver in the mode of forming the output signal "Fire", not more than

0.04 A

Current consumed by the receiver in the mode of forming the output signal "Fault", not more than

0.011 A

Current surge value at formation of the output signal "Attention"

0.00675...0.00825 A

Maximum possible duration of interruptions or polarity reversals of the supply voltage that do not affect normal operation

0.1

Minimum permissible power interruption interval frequency

Minimum required duration of power cut-off to ensure resetting of recorded notifications.

Typical inertia of detector operation (for "Attention" and "Fire" signals)

Maximum inertia of detector actuation (by signals "Attention" and "Fire")

Inertia of "Fault" notification fixation in the "Fault - memory" mode

3...5

Inertia of "Fault" notification fixation in the "Fault - tolerance" mode

3...5

Inertia of "Fault" notification fixation in the "Fault - Beam" mode

1.5...2.5

Inertia of "Fault" notification fixation in the "Fault - synchronization" mode

40...70

Inertia of "Fault" notification fixation in the "Fault - failure" mode

40...70

Inertia of "Fault" notification fixation in the "Fault - excess" mode

40...70

Inertia of "Fault" notification fixation in the "Fault - Reduction" mode

40...70

Typical value of resistance of closed contacts of optorelay outputs

15 ohm

Maximum value of resistance of closed contacts of optorelay outputs

25 ohm

Resistance value of open contacts of optorelay outputs, not less than

500000 ohm

Isolation resistance value of output optorelay circuits from detector power supply circuits, not less than

500000 ohm

Maximum permissible current value switched by the optorelay outputs

0.1 A

Maximum permissible voltage value switched by optorelay outputs .

100 V

Maximum permissible value of wire resistance of the communication line between the receiver and the transmitter

220 ohm

Weight of the receiver and transmitter separately, not more than

0.42 kg

Degree of protection of the shell according to GOST 14254, IP

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
