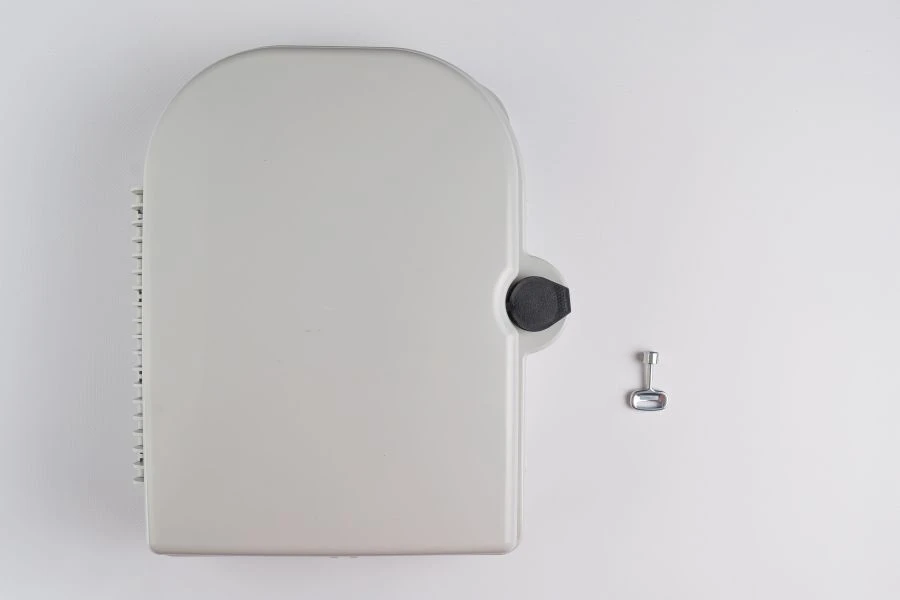

Optical Distribution Cabinet for Data Transmission - UFN-FTTH-SPLIT

Plastic Utility Products

Manufacturer:Svyazstroyservis LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

UFN Optical Distribution Cabinet UFN-FTTH-SPLIT: Enterprise-grade fiber infrastructure built for urban environments. UV and frost-resistant polymer-sand composite with galvanized steel reinforcement withstands extreme weather without maintenance. Engineered for parks, plazas, and commercial zones requiring reliable FTTH connectivity.

Secure mounting systems and weatherproof design protect high-speed data transmission in challenging outdoor conditions. Zero-maintenance construction ensures continuous network performance across municipal installations. $15,000–$25,000.

Specifications

Type of product according to PP RF 616

Plastic products other, not included in other groupings (introduced by the Change 13/2016 OKPD2, approved by the Order of Rosstandart of 28.09.2016 N 1237-st)

Material

Plastic, resistant to UV and temperature fluctuations

Weight, up to

1.6 kg

Operating temperature

-40...60 °C

Degree of protection

IP65

Number of SC/LC Duplex type adapter

4 pcs

Number of KDZS sleeves to be installed

48 pcs

Number of installable optical dividers in a mini case (90x20x10 mm)

2 pcs

Number of installable optical dividers of cassette type ( 130x100x25 mm)

2 pcs

Number of 3x2mm SM1 subscriber cable glands, up to

24 pcs

Number of subscriber cable glands - SM1 of 5x2mm size, to

B1/B8 2100/900 MHz pcs

Permissible diameter of cables to be inserted, up to

14 mm

Number of line cable entries

3 pcs

Mounting

Outdoors, including on the walls of buildings, and indoors

Color

Grey (any RAL colour is possible)

Depth

110 mm

Width

270 mm

Length

330 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
