Optical Communication Cable OKng(A)-HF-M for Versatile Installation Applications

Individual Sheathed Fibre Cables

Manufacturer: ALTAY-KABEL LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

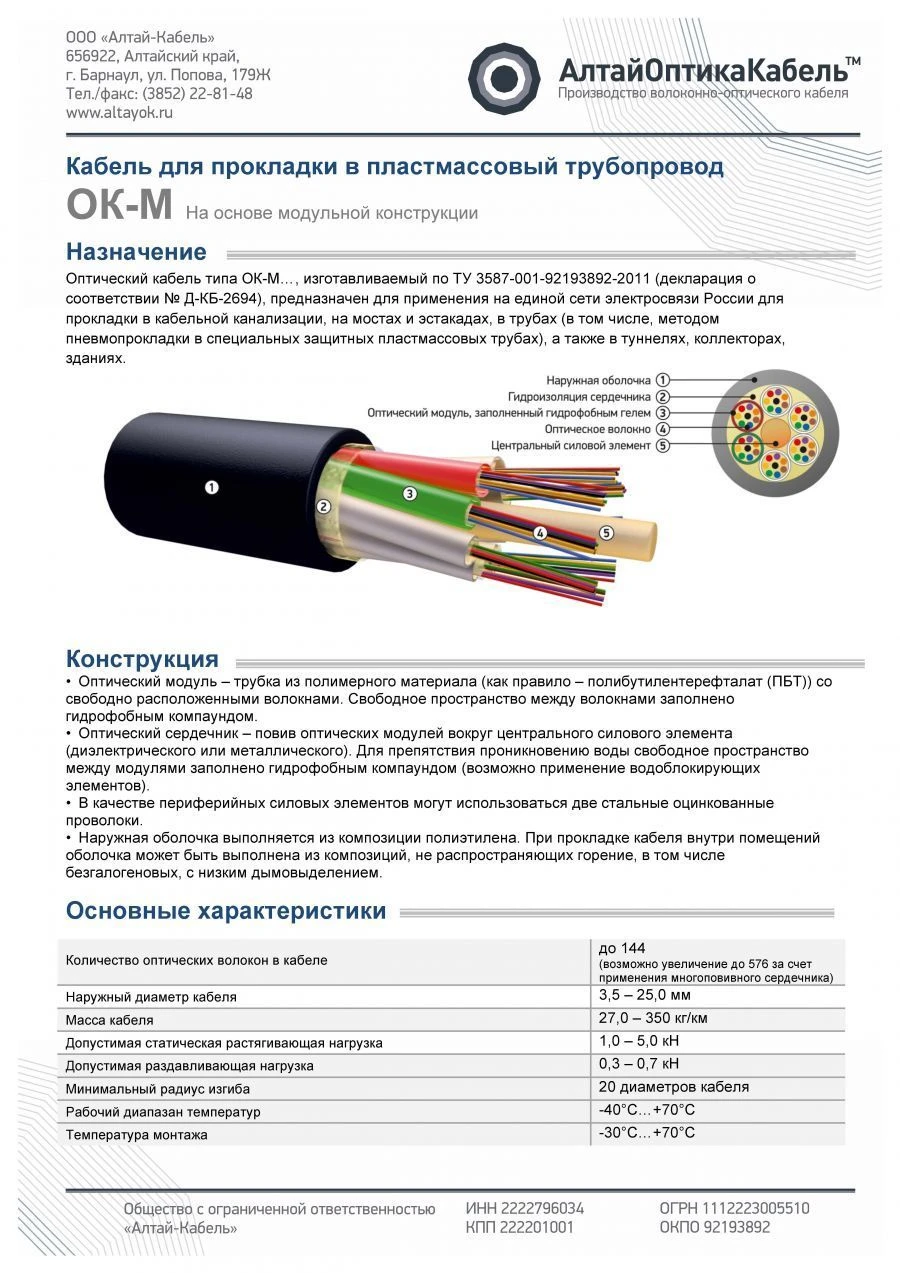

Optical communication cable of OK-M type (TU 3587-001-92193892-2011)

Description

Optical communication cables. Fibre-optic cable for laying in cable ducts, in cable trays, channels, collectors, tunnels, on bridges, overpasses, in pipes (including pneumatic laying in special protective plastic pipes), power facilities, on the facades of buildings, inside buildings and structures, for suspension on the supports of communication lines, power lines, lighting poles, between buildings and structures by methods of coiling, connection and attachment to external load-bearing power elements. The cables can contain up to 720 optical fibres.

The cables are manufactured using fibres produced in the territory of the EAEU member states. Attenuation coefficient at the operating wavelength, dB/km: for ?=1310nm not more than 0.35; for ?=1550nm not more than 0.22. Cable operation temperature is from minus 60º?

to plus 70º?. Permissible tensile load is not less than 1,0 kN.

Specifications

Dimensions

millimeter

Connection

Presence of protective covers

Armoured glass

Presence of conductive core

Dielectric design

Armoured glass

Cable type

assembly (m) ; for indoor and fixed installations (c), OK-GTS for installation in protective pipes

Number of optical fibers in the cable

2...720 pcs

Type of containment material

not spreading combustion (ng) ; with reduced corrosivity of smoke and gas emission products (hf) ; with low smoke and gas emission (ls) .

Scope of application

assembly (m) ; for indoor and fixed installations (c)

Wavelength of single-mode fiber, µm

1.55; 1.31

Single-mode fiber type

with unbiased dispersion ; with reduced losses at small bending radii ; with non-zero dispersion for broadband data transmission ; with biased non-zero dispersion ; with biased cutoff wavelength ; with biased zero dispersion .

Attenuation coefficient, dB/km

0;22

Type of optical fiber in the cable

single-mode

Cable type

mounting; distribution; suspension

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
