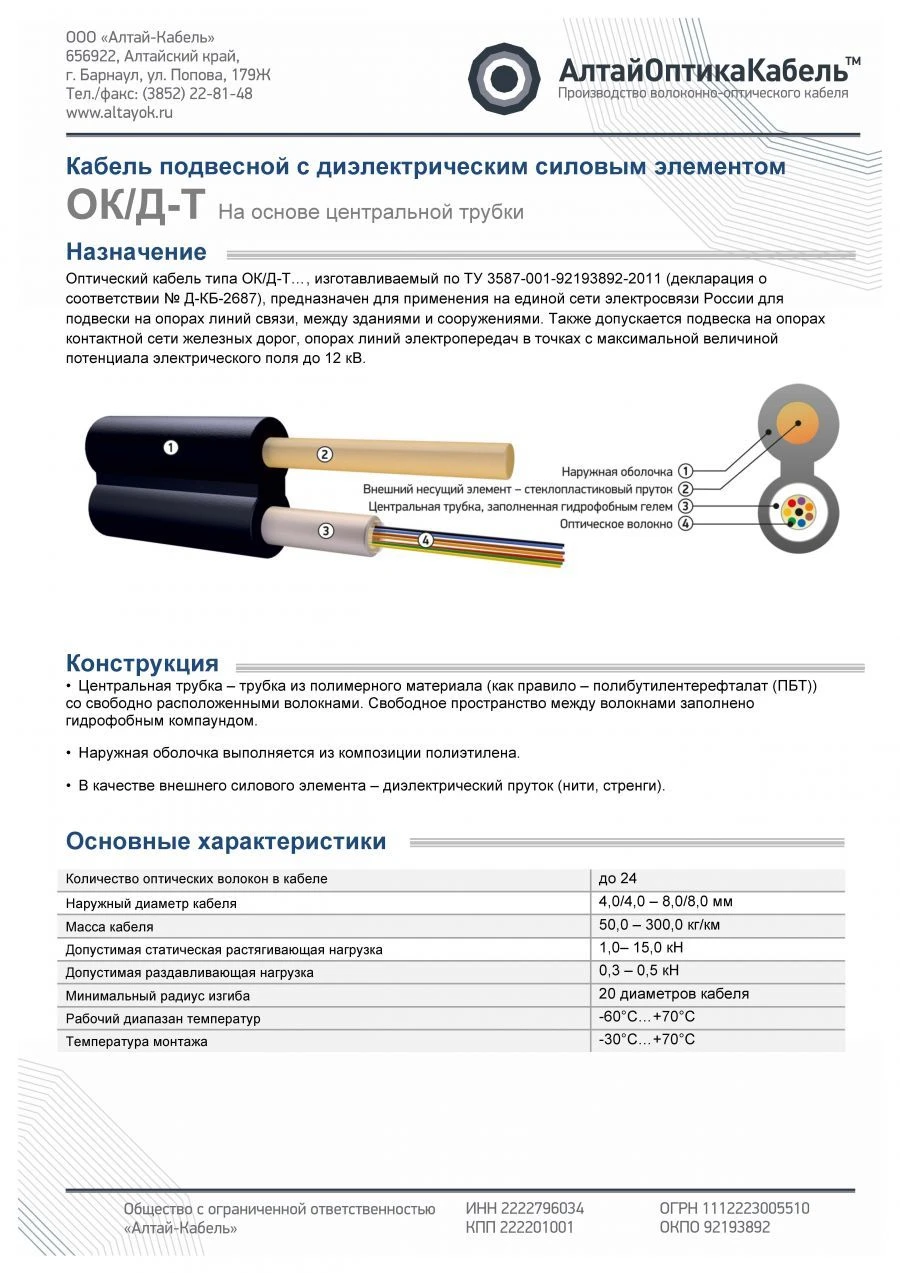

Optical Communication Cable OK/D-T for Suspension in Various Applications

Individual Sheathed Fibre Cables

Manufacturer: ALTAY-KABEL LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Fibre-optic cable for suspension on communication line supports, railway contact network, lighting supports and power transmission lines at points with maximum electric field potential up to 12 kV, power facilities, on facades of buildings, between buildings and structures, can be used in cable ducts, cable trays, in pipes, tunnels, collectors, on bridges and overpasses, inside buildings and structures. The cables can contain up to 48 optical fibres. The cables are manufactured using fibres produced in the territory of the EAEU member states.

Attenuation coefficient at the operating wavelength, dB/km: for ?=1310nm not more than 0.35; for ?=1550nm not more than 0.22. Cable operation temperature is from minus 60º? to plus 70º?.

Permissible tensile load is not less than 1,5 kN.

Specifications

Dimensions

5-25

Connection

Presence of protective covers

Armoured glass

Presence of conductive core

Dielectric design

Armoured glass

Cable type

Suspended

Number of optical fibers in the cable

2...48 pcs

Type of containment material

945

Scope of application

for overhead wiring (AH)

Wavelength of single-mode fiber, µm

1.55; 1.31

Type of single-mode cable

with unbiased dispersion ; with reduced losses at small bending radii ; with non-zero dispersion for broadband data transmission ; with biased non-zero dispersion ; with biased cutoff wavelength ; with biased zero dispersion .

Attenuation coefficient, dB/km

0;22

Type of optical fiber in the cable

single-mode

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
